2952790

Active

Phoenix Contact

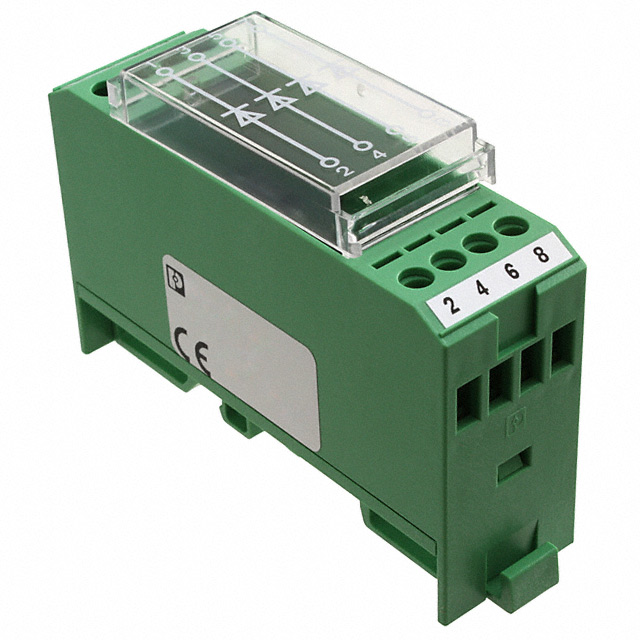

DIODE MODULE GP 1KV 1.5A

Search across all available documentation for this part.

Active

Phoenix Contact

DIODE MODULE GP 1KV 1.5A

Technical Specifications

Parameters and characteristics for this part

Specification	2952790

Current - Reverse Leakage @ Vr	10 çA
Diode Configuration	4 Independent
Mounting Type	DIN Rail/Channel
Operating Temperature - Junction [Max]	50 °C
Operating Temperature - Junction [Min]	-20 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V

DIODE MODULE GP 1KV 1.5A

Part	Technology	Current - Reverse Leakage @ Vr	Diode Configuration	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case
Phoenix Contact 2952790	Standard	10 çA	4 Independent	Module	50 °C	-20 °C	DIN Rail/Channel	Standard Recovery >500ns	200 mA	1000 V	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 72.08

General part information

Diode Array 4 Independent 1000 V 1.5A DIN Rail/Channel Module

Technical documentation and resources
