5153-2-5

Active

3M (TC)

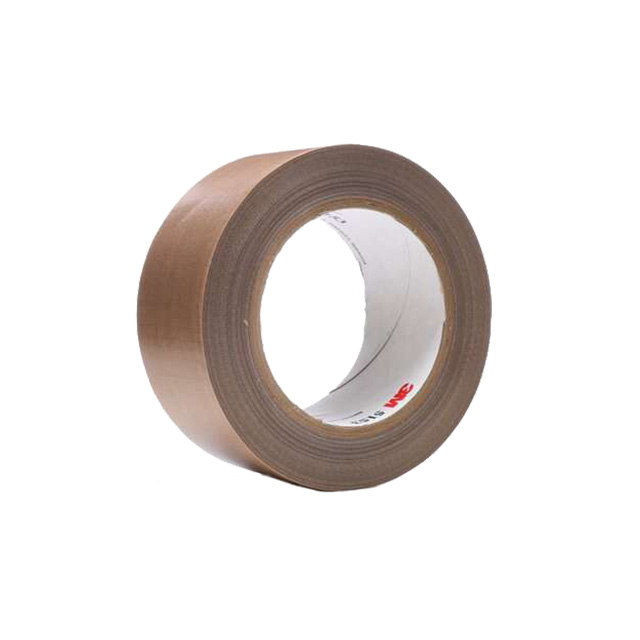

TAPE GLASS CLOTH BROWN 2"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

5153-2-5

Active

3M (TC)

TAPE GLASS CLOTH BROWN 2"X5YDS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5153-2-5

Adhesive	Silicone Thermosetting
Color	Brown
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Glass Cloth
Temperature Range [Max]	400 °F
Temperature Range [Max]	204 °C
Temperature Range [Min]	-100 °F
Temperature Range [Min]	-73 °C
Thickness	8 mils
Thickness	0.008 in
Thickness	0.203 mm
Thickness - Adhesive	2.2 mils
Thickness - Adhesive	0.056 mm
Thickness - Adhesive	0.0022 "
Thickness - Backing, Carrier	0.147 mm
Thickness - Backing, Carrier	5.8 mils
Thickness - Backing, Carrier	0.0058 in
Usage	General Purpose
Width [y]	2 "
Width [y]	50.8 mm

5153 Series

Part	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Length	Length	Length	Shelf Life	Tape Type	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Color	Temperature Range [Min]	Temperature Range [Max]	Width [x]	Width	Shelf Life Start	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Adhesive	Thickness	Thickness	Thickness	Width [x]	Width	Width	Usage	Temperature Range [Min]	Temperature Range [Max]	Width [y]	Width [y]
3M (TC) 3M 5153 10" X 36YD	16 °C 60 °F	27 °C 80 °F	36 yd	32.9 m	108 ft	24 Months	Glass Cloth	2.2 mils	0.056 mm	0.0022 "	Brown	-100 °F -73 °C	260 °C	10 in	254 mm	Date of Manufacture	0.147 mm	5.8 mils	0.0058 in	Silicone Thermosetting	8 mils	0.008 in	0.203 mm
3M (TC) 3M 5153 7" X 36YD	16 °C 60 °F	27 °C 80 °F	36 yd	32.9 m	108 ft	24 Months	Glass Cloth	2.2 mils	0.056 mm	0.0022 "	Brown	-100 °F -73 °C	260 °C	7 in		Date of Manufacture	0.147 mm	5.8 mils	0.0058 in	Silicone Thermosetting	8 mils	0.008 in	0.203 mm	177.8 mm
3M (TC) 3M 5153 0.438" X 36YD	16 °C 60 °F	27 °C 80 °F	36 yd	32.9 m	108 ft	24 Months	Glass Cloth	2.2 mils	0.056 mm	0.0022 "	Brown	-100 °F -73 °C	260 °C		11.13 mm	Date of Manufacture	0.147 mm	5.8 mils	0.0058 in	Silicone Thermosetting	8 mils	0.008 in	0.203 mm		0.44 in	0.4375 in
3M (TC) 5153-1-5	16 °C 60 °F	27 °C 80 °F	5 yd	4.6 m	15 ft	24 Months	Glass Cloth	2.2 mils	0.056 mm	0.0022 "	Brown	-100 °F	400 °F	1 in		Date of Manufacture	0.147 mm	5.8 mils	0.0058 in	Silicone Thermosetting	8 mils	0.008 in	0.203 mm	25.4 mm			General Purpose	-73 °C	204 °C
3M (TC) 10-5-5153	16 °C 60 °F	27 °C 80 °F	5 yd	4.6 m	15 ft	24 Months	Glass Cloth	2.2 mils	0.056 mm	0.0022 "	Brown	-100 °F	400 °F	10 in	254 mm	Date of Manufacture	0.147 mm	5.8 mils	0.0058 in	Silicone Thermosetting	8 mils	0.008 in	0.203 mm				General Purpose	-73 °C	204 °C
3M (TC) 3M 5153 0.71" X 36YD	16 °C 60 °F	27 °C 80 °F	36 yd	32.9 m	108 ft	24 Months	Glass Cloth	2.2 mils	0.056 mm	0.0022 "	Brown	-100 °F -73 °C	260 °C	0.71 in		Date of Manufacture	0.147 mm	5.8 mils	0.0058 in	Silicone Thermosetting	8 mils	0.008 in	0.203 mm	18 mm
3M (TC) 3M 5153 1.89" X 36YD	16 °C 60 °F	27 °C 80 °F	36 yd	32.9 m	108 ft	24 Months	Glass Cloth	2.2 mils	0.056 mm	0.0022 "	Brown	-100 °F -73 °C	260 °C			Date of Manufacture	0.147 mm	5.8 mils	0.0058 in	Silicone Thermosetting	8 mils	0.008 in	0.203 mm							48 mm	1.89 in
3M (TC) 5153-2-5	16 °C 60 °F	27 °C 80 °F	5 yd	4.6 m	15 ft	24 Months	Glass Cloth	2.2 mils	0.056 mm	0.0022 "	Brown	-100 °F	400 °F			Date of Manufacture	0.147 mm	5.8 mils	0.0058 in	Silicone Thermosetting	8 mils	0.008 in	0.203 mm				General Purpose	-73 °C	204 °C	50.8 mm	2 "
3M (TC) 3M 5153 0.125" X 36YD	16 °C 60 °F	27 °C 80 °F	36 yd	32.9 m	108 ft	24 Months	Glass Cloth	2.2 mils	0.056 mm	0.0022 "	Brown	-100 °F -73 °C	260 °C		3.18 mm	Date of Manufacture	0.147 mm	5.8 mils	0.0058 in	Silicone Thermosetting	8 mils	0.008 in	0.203 mm		0.13 in	0.125 "
3M (TC) 5-5-5153	16 °C 60 °F	27 °C 80 °F	5 yd	4.6 m	15 ft	24 Months	Glass Cloth	2.2 mils	0.056 mm	0.0022 "	Brown	-100 °F	400 °F			Date of Manufacture	0.147 mm	5.8 mils	0.0058 in	Silicone Thermosetting	8 mils	0.008 in	0.203 mm				General Purpose	-73 °C	204 °C	127 mm	5 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 85.74

Description

General part information

5153 Series

Glass Cloth Tape Silicone Thermosetting Adhesive Brown 2.00" (50.80mm) X 15' (4.6m) 5 yds

Documents

Technical documentation and resources

No documents available
