General part information

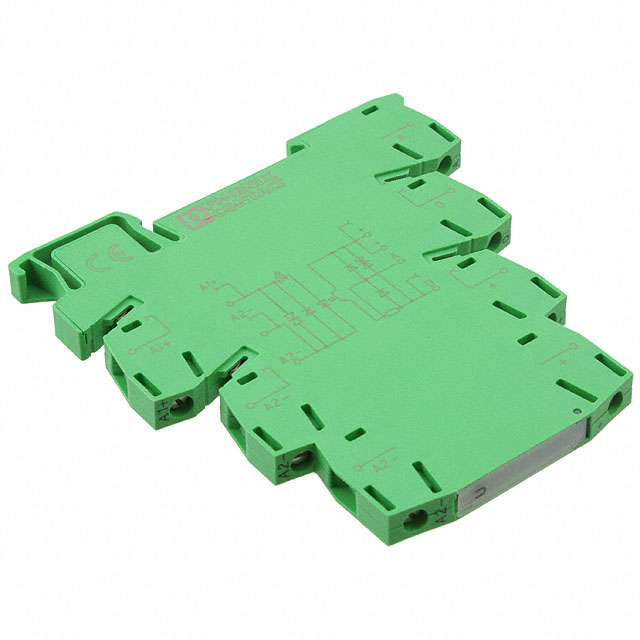

Solid State Relays - Industrial Mount PLC-OSC-24DC/TTL
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 2982728 |
|---|---|
| Approval Agency | EN, IEC |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | DC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input | 24 V |
| Voltage - Load [Max] | 5 V |
| Voltage - Load [Min] | 0 V |
Solid State Relays - Industrial Mount PLC-OSC-24DC/TTL
| Part | Voltage - Load [Max] | Voltage - Load [Min] | Package / Case | Output Type | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Mounting Type | Voltage - Input |
|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2982728 | 5 V | 0 V | Module | DC | EN, IEC | -20 C | 60 °C | Screw Terminal | DIN Rail | 24 V |
