Q-0F03F000H0.5M

Active

Amphenol Custom Cable

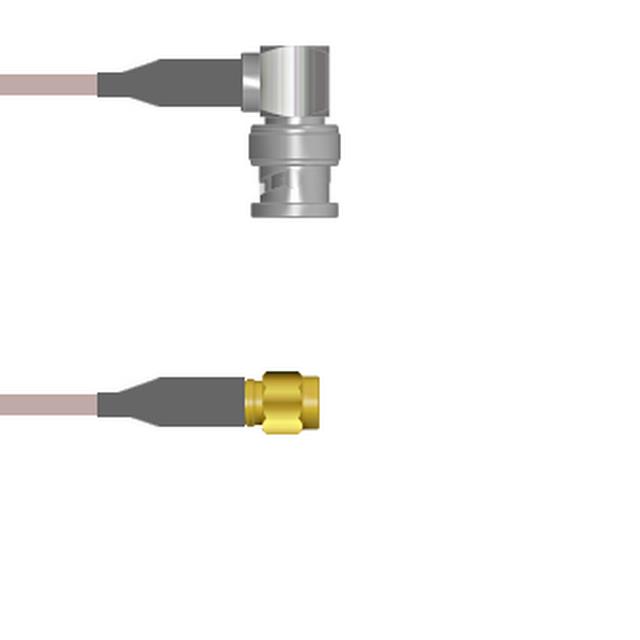

CBL ASSY BNC-SMA PLUG-PLG 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0F03F000H0.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLUG-PLG 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0F03F000H0.5M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0F03F0 Series

Part	2nd Connector Mounting Type	Frequency - Max [Max]	1st Connector Mounting Type	2nd Connector	Length	Length	Length	1st Contact Gender	Cable Type	1st Connector	Features	2nd Contact Gender	Style	Color	Overall Impedance	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0F03F000H003M	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMA Plug	3 m	118.1 in	9.8 '	Male	RG-142	BNC Plug Right Angle	Shielded	Male	BNC to SMA	Copper	50 Ohms
Amphenol Custom Cable Q-0F03F000H006i	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMA Plug	152.4 mm	6 in		Male	RG-142	BNC Plug Right Angle	Shielded	Male	BNC to SMA	Copper	50 Ohms
Amphenol Custom Cable Q-0F03F000H0.5M	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMA Plug	50 cm	19.69 "		Male	RG-142	BNC Plug Right Angle	Shielded	Male	BNC to SMA	Copper	50 Ohms
Amphenol Custom Cable Q-0F03F000H.75M	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMA Plug	750 mm	29.53 "		Male	RG-142	BNC Plug Right Angle	Shielded	Male	BNC to SMA	Copper	50 Ohms
Amphenol Custom Cable Q-0F03F000H048i	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMA Plug	1200 mm	48 in	4 ft	Male	RG-142	BNC Plug Right Angle	Shielded	Male	BNC to SMA	Copper	50 Ohms
Amphenol Custom Cable Q-0F03F000H2.5M	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMA Plug	2.5 m	98.4 in	8.2 '	Male	RG-142	BNC Plug Right Angle	Shielded	Male	BNC to SMA	Copper	50 Ohms
Amphenol Custom Cable Q-0F03F000H.25M	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMA Plug				Male	RG-142	BNC Plug Right Angle	Shielded	Male	BNC to SMA	Copper	50 Ohms	9.843 "	250 mm
Amphenol Custom Cable Q-0F03F000H036i	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMA Plug	91.44 cm	36 in		Male	RG-142	BNC Plug Right Angle	Shielded	Male	BNC to SMA	Copper	50 Ohms
Amphenol Custom Cable Q-0F03F000H018i	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMA Plug				Male	RG-142	BNC Plug Right Angle	Shielded	Male	BNC to SMA	Copper	50 Ohms		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0F03F000H1.5M	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMA Plug	1.5 m	59.1 in	4.9 ft	Male	RG-142	BNC Plug Right Angle	Shielded	Male	BNC to SMA	Copper	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 92.17
		25	$ 90.36
		50	$ 88.55
		100	$ 86.74
		250	$ 84.92

Description

General part information

Q-0F03F0 Series

Cable Assembly Coaxial BNC to SMA RG-142 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
