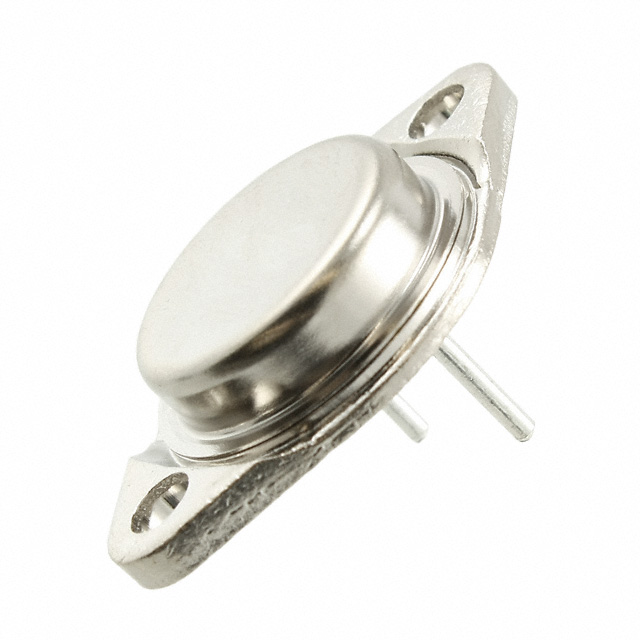

IXGM40N60A

Obsolete

IXYS

IGBT MODULE 600V 75A 250W TO204

Search across all available documentation for this part.

Obsolete

IXYS

IGBT MODULE 600V 75A 250W TO204

Technical Specifications

Parameters and characteristics for this part

Specification	IXGM40N60A

Configuration	Single
Current - Collector (Ic) (Max) [Max]	75 A
Current - Collector Cutoff (Max) [Max]	200 µA
Input	Standard
Input Capacitance (Cies) @ Vce	4.5 nF
Mounting Type	Chassis Mount
NTC Thermistor	False
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-3, TO-204AA
Power - Max [Max]	250 W
Supplier Device Package	TO-204
Vce(on) (Max) @ Vge, Ic	3 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Vce(on) (Max) @ Vge, Ic	Input	Current - Collector (Ic) (Max) [Max]	Configuration	NTC Thermistor	Mounting Type	Input Capacitance (Cies) @ Vce	Power - Max [Max]	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Td (on/off) @ 25°C	Current - Collector Pulsed (Icm)	Test Condition	Gate Charge	Reverse Recovery Time (trr)
IXYS IXGM40N60A	200 µA	-55 °C	150 °C	3 V	Standard	75 A	Single		Chassis Mount	4.5 nF	250 W	TO-204AA TO-3	600 V	TO-204
IXYS IXGM40N60		-55 °C	150 °C	2.5 V		75 A			Through Hole		250 W		600 V	TO-204AE	100 ns 600 ns	150 A	15 V 22 Ohm 40 A 480 V	250 nC	200 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module Single 600 V 75 A 250 W Chassis Mount TO-204
