26132-76-01

Active

Orion Fans

CORD 16AWG 5-15P TO C13 7.50'

Search across all available documentation for this part.

Active

Orion Fans

CORD 16AWG 5-15P TO C13 7.50'

Technical Specifications

Parameters and characteristics for this part

Specification	26132-76-01

1st Connector	NEMA 5-15P
2nd Connector	IEC 320-C13, Right Angle
Approval Agency Marking	CSA, KEMA, BSI Kitemark, OVE, NEMKO, SEMKO, IMQ, CEBEC, DEMKO, NF, ESTI, T, UL, ASTA, VDE Registered, FIMKO, SAA
Approved Countries	Netherlands, Japan, Norway, New Zealand, United States, Sweden, Finland, Australia, Canada, United Kingdom, Europe
Color	Black
Cord Type	SJT
Current Rating (Amps)	13 A
Length	90 in
Length	2.29 m
Number of Conductors	3
Operating Temperature	60 °C
Shielding	Unshielded
Style	Male Pins, Female Sockets
Voltage Rating	125 VAC
Wire Gauge	16 AWG

CORD 16AWG 5-15P TO C13 7.50'

Part	Color	Current Rating (Amps)	Shielding	Voltage Rating	Approval Agency Marking	Length	Length	2nd Connector	Wire Gauge	Number of Conductors	Operating Temperature	Style	1st Connector	Cord Type	Approved Countries
Orion Fans 26132-76-01	Black	13 A	Unshielded	125 VAC	ASTA, BSI Kitemark, CEBEC, CSA, DEMKO, ESTI, FIMKO, IMQ, KEMA, NEMKO, NF, OVE, SAA, SEMKO, T, UL, VDE Registered	90 in	2.29 m	IEC 320-C13, Right Angle	16 AWG	3	60 °C	Female Sockets, Male Pins	NEMA 5-15P	SJT	Australia, Canada, Europe, Finland, Japan, Netherlands, New Zealand, Norway, Sweden, United Kingdom, United States

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

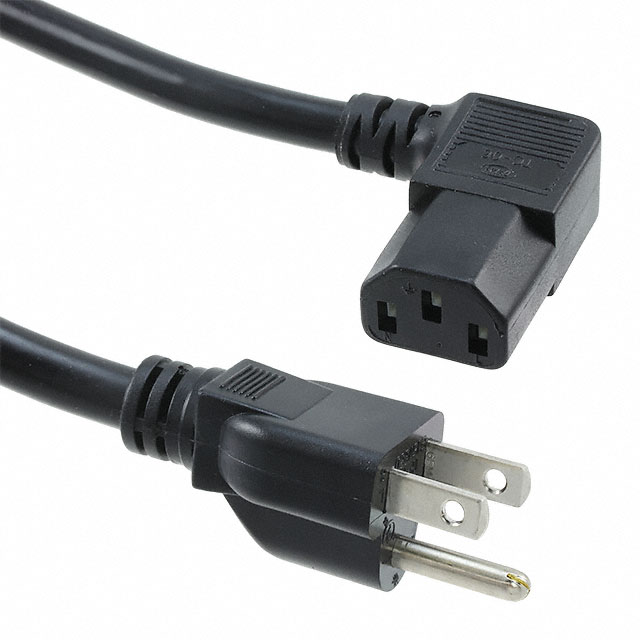

7.50' (2.29m) Power Cord Black NEMA 5-15P To IEC 320-C13, Right Angle SJT
