05001-02N

Active

Grayhill Inc.

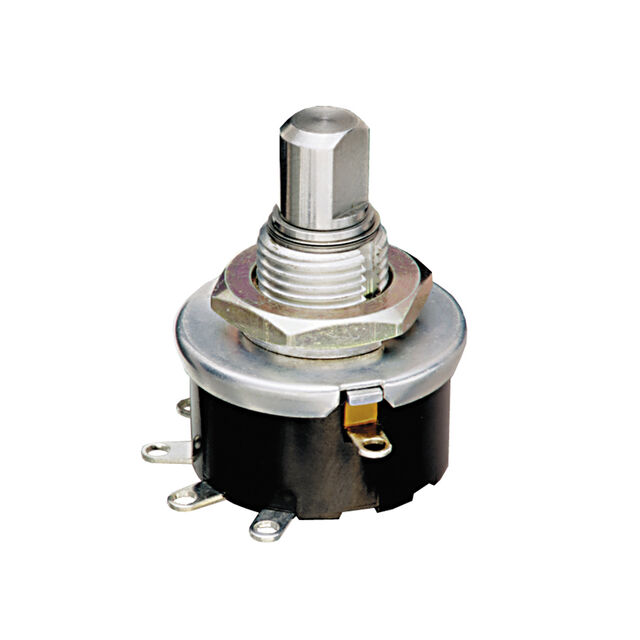

SWITCH ROTARY 2POS 1A 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY 2POS 1A 115V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 81.82

General part information

Rotary Switch 2 Position SPDT 1A (AC/DC) 115 VAC Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

ROTARY SWITCH,STRAIGHT,SP4T,ON-ON,NUMBER OF POSITIONS:4,SOLDER TERMINAL,ROTARY SHAFT

Part	Number of Decks [custom]	Index Stops	Contact Timing	Termination Style	Depth Behind Panel [z]	Angle of Throw	Contact Material	Number of Positions	Actuator Type [diameter]	Actuator Type	Circuit per Deck	Voltage Rating - AC	Contact Finish	Voltage Rating - DC	Number of Poles per Deck
Grayhill Inc. 05001-04S	1	Fixed	Shorting	Solder Lug	12.45 mm	36 °	Phosphor Bronze	4	6.35 mm	Flatted	SP4T	115 V	Silver	28 V	1
Grayhill Inc. 05001-08N	1	Fixed	Non-Shorting	Solder Lug	12.45 mm	36 °	Phosphor Bronze	8	6.35 mm	Flatted	SP8T	115 V	Silver	28 V	1
Grayhill Inc. 05001-03N	1	Fixed	Non-Shorting	Solder Lug	12.45 mm	36 °	Phosphor Bronze		6.35 mm	Flatted	SP3T	115 V	Silver	28 V	1
Grayhill Inc. 05001-05N	1	Fixed	Non-Shorting	Solder Lug	12.45 mm	36 °	Phosphor Bronze		6.35 mm	Flatted	SP5T	115 V	Silver	28 V	1
Grayhill Inc. 05001-02N	1	Fixed	Non-Shorting	Solder Lug	12.45 mm	36 °	Phosphor Bronze	2	6.35 mm	Flatted	SPDT	115 V	Silver	28 V	1
Grayhill Inc. 05001-07S	1	Fixed	Shorting	Solder Lug	12.45 mm	36 °	Phosphor Bronze	7	6.35 mm	Flatted	SP7T	115 V	Silver	28 V	1
