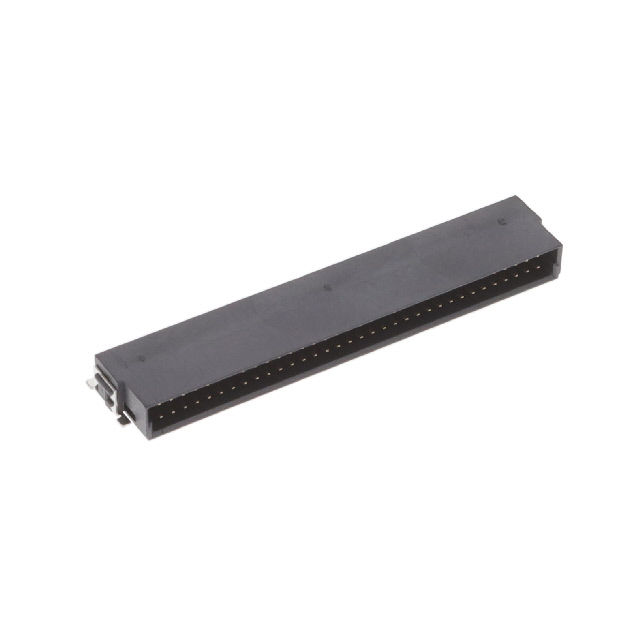

ESMC-M-68-SGR-SMT-T/R

Active

Adam Tech

CONN HEADER R/A SMT 68POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMedical Industry Brochure Datasheet

ESMC-M-68-SGR-SMT-T/R

Active

Adam Tech

CONN HEADER R/A SMT 68POS 1.27MM

Deep-Dive with AI

DocumentsMedical Industry Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESMC-M-68-SGR-SMT-T/R

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.2 A
Fastening Type	Push-Pull
Features	Solder Retention, Board Guide
Insulation Color	Black
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	68
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

ESMC-M Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Termination	Number of Positions	Mated Stacking Heights	Number of Positions Loaded	Material Flammability Rating	Contact Shape	Number of Rows	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Features	Mounting Type	Contact Finish - Post	Insulation Material	Contact Length - Mating	Contact Length - Mating	Connector Type	Fastening Type	Shrouding	Current Rating (Amps)	Insulation Height	Insulation Height	Insulation Color	Number of Positions	Insulation Height [z]	Insulation Height [z]	Insulation Height [custom]	Insulation Height [custom]
Adam Tech ESMC-M-12-SGS-SMT-A-PP-T/R	-55 °C	125 °C	Flash	Solder	12	8 mm 10.8 mm 15.4 mm	All	UL94 V-0	Square	2	Gold	0.05 in	1.27 mm	Male Pin	0.05 in	1.27 mm	Phosphor Bronze	Board Guide Pick and Place Solder Retention	Surface Mount	Tin	Thermoplastic	4 mm	0.157 in	Header	Push-Pull	Shrouded - 4 Wall	1.2 A	0.266 in	6.76 mm	Black
Adam Tech ESMC-M-16-SGS-SMT-A-PP-T/R	-55 °C	125 °C	Flash	Solder		8 mm 10.8 mm 15.4 mm	All	UL94 V-0	Square	2	Gold	0.05 in	1.27 mm	Male Pin	0.05 in	1.27 mm	Phosphor Bronze	Board Guide Pick and Place Solder Retention	Surface Mount	Tin	Thermoplastic	4 mm	0.157 in	Header	Push-Pull	Shrouded - 4 Wall	1.2 A	0.266 in	6.76 mm	Black	16
Adam Tech ESMC-M-50-SGS-SMT-B-PP-T/R	-55 °C	125 °C	Flash	Solder	50	9.5 mm 12.3 mm 16.9 mm	All	UL94 V-0	Square	2	Gold	0.05 in	1.27 mm	Male Pin	0.05 in	1.27 mm	Phosphor Bronze	Board Guide Pick and Place Solder Retention	Surface Mount	Tin	Thermoplastic	4 mm	0.157 in	Header	Push-Pull	Shrouded - 4 Wall	1.2 A	0.325 in	8.25 mm	Black
Adam Tech ESMC-M-16-SGR-SMT-T/R	-55 °C	125 °C	Flash	Solder			All	UL94 V-0	Square	2	Gold	0.05 in	1.27 mm	Male Pin	0.05 in	1.27 mm	Phosphor Bronze	Board Guide Solder Retention	Surface Mount Right Angle	Tin	Thermoplastic	4 mm	0.157 in	Header	Push-Pull	Shrouded - 4 Wall	1.2 A			Black	16	0.165 in	4.2 mm
Adam Tech ESMC-M-40-SGS-SMT-C-PP-T/R	-55 °C	125 °C	Flash	Solder	40	11.1 mm 13.9 mm 18.5 mm	All	UL94 V-0	Square	2	Gold	0.05 in	1.27 mm	Male Pin	0.05 in	1.27 mm	Phosphor Bronze	Board Guide Pick and Place Solder Retention	Surface Mount	Tin	Thermoplastic	4 mm	0.157 in	Header	Push-Pull	Shrouded - 4 Wall	1.2 A			Black				9.86 mm	0.388 in
Adam Tech ESMC-M-12-SGS-SMT-B-PP-T/R	-55 °C	125 °C	Flash	Solder	12	9.5 mm 12.3 mm 16.9 mm	All	UL94 V-0	Square	2	Gold	0.05 in	1.27 mm	Male Pin	0.05 in	1.27 mm	Phosphor Bronze	Board Guide Pick and Place Solder Retention	Surface Mount	Tin	Thermoplastic	4 mm	0.157 in	Header	Push-Pull	Shrouded - 4 Wall	1.2 A	0.325 in	8.25 mm	Black
Adam Tech ESMC-M-26-SGS-SMT-B-PP-T/R	-55 °C	125 °C	Flash	Solder	26	9.5 mm 12.3 mm 16.9 mm	All	UL94 V-0	Square	2	Gold	0.05 in	1.27 mm	Male Pin	0.05 in	1.27 mm	Phosphor Bronze	Board Guide Pick and Place Solder Retention	Surface Mount	Tin	Thermoplastic	4 mm	0.157 in	Header	Push-Pull	Shrouded - 4 Wall	1.2 A	0.325 in	8.25 mm	Black
Adam Tech ESMC-M-16-SGS-SMT-B-PP-T/R	-55 °C	125 °C	Flash	Solder		9.5 mm 12.3 mm 16.9 mm	All	UL94 V-0	Square	2	Gold	0.05 in	1.27 mm	Male Pin	0.05 in	1.27 mm	Phosphor Bronze	Board Guide Pick and Place Solder Retention	Surface Mount	Tin	Thermoplastic	4 mm	0.157 in	Header	Push-Pull	Shrouded - 4 Wall	1.2 A	0.325 in	8.25 mm	Black	16
Adam Tech ESMC-M-32-SGS-SMT-C-PP-T/R	-55 °C	125 °C	Flash	Solder		11.1 mm 13.9 mm 18.5 mm	All	UL94 V-0	Square	2	Gold	0.05 in	1.27 mm	Male Pin	0.05 in	1.27 mm	Phosphor Bronze	Board Guide Pick and Place Solder Retention	Surface Mount	Tin	Thermoplastic	4 mm	0.157 in	Header	Push-Pull	Shrouded - 4 Wall	1.2 A			Black				9.86 mm	0.388 in
Adam Tech ESMC-M-68-SGR-SMT-T/R	-55 °C	125 °C	Flash	Solder	68		All	UL94 V-0	Square	2	Gold	0.05 in	1.27 mm	Male Pin	0.05 in	1.27 mm	Phosphor Bronze	Board Guide Solder Retention	Surface Mount Right Angle	Tin	Thermoplastic	4 mm	0.157 in	Header	Push-Pull	Shrouded - 4 Wall	1.2 A			Black		0.165 in	4.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.46
		10	$ 4.18
		100	$ 3.24
	Tape & Reel (TR)	1800	$ 2.41

Description

General part information

ESMC-M Series

Connector Header Surface Mount, Right Angle 68 position 0.050" (1.27mm)

Documents

Technical documentation and resources

Medical Industry Brochure

Datasheet
