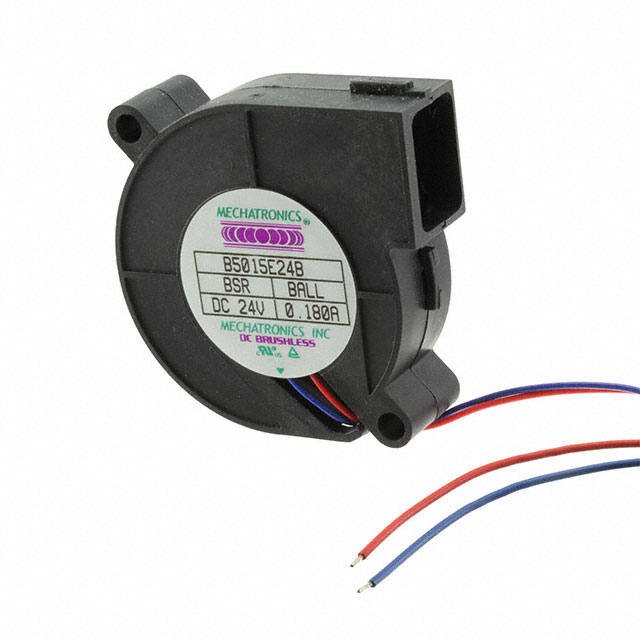

B5015E24B-BSR

Active

Mechatronics Fan Group

FAN BLOWER 51X15.7MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Fans & Blowers Catalog +2

B5015E24B-BSR

Active

Mechatronics Fan Group

FAN BLOWER 51X15.7MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Fans & Blowers Catalog +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.72
		10	$ 9.55
		25	$ 9.13
		50	$ 8.82
		100	$ 8.52
		300	$ 8.06
		500	$ 7.86

Description

General part information

B5015 Series

Fan Blower 24VDC Square/Rounded - 51mm L x 51mm H Ball 5.0 CFM (0.140m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Datasheet

Specification	B5015E24B-BSR	B5015 Series

Air Flow	5 CFM	3 - 5 CFM
Air Flow	0.14 mł/min	0.084 - 0.14 m³/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.18 A	0.09 - 400 A
Fan Type	Blower	Blower
Features	Thermal Overload Protector (TOP)	Thermal Overload Protector (TOP), Locked Rotor Sensor, Alarm Sensor, Speed Sensor (Tach), Conformal Coating
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	45 dB(A)	35 - 45 dB(A)
RPM	6500 RPM	4500 - 6500 RPM
Size / Dimension	Square/Rounded	Square/Rounded
Size / Dimension [x]	51 mm	51 mm
Size / Dimension [z]	51 mm	51 mm
Static Pressure	0.88 in H2O	0.35 - 0.88 in H2O
Static Pressure	219.2 Pa	87.2 - 219.2 Pa
Termination	2 Wire Leads	2 Wire Leads, 3 Wire Leads, 4 Wire Leads
Voltage - Rated	24 VDC	5 - 24 VDC
Weight	28.12 g	24.95 - 28.12 g
Weight	0.062 lb	0.055 - 0.062 lb
Width [y]	15.7 mm	15.7 mm

Part

Current Rating (Amps)

Fan Type

Weight

Static Pressure

Material - Blade

RPM

Size / Dimension

Size / Dimension [z]

Size / Dimension [x]

Air Flow

Width [y]

Approval Agency

Noise

Termination

Bearing Type

Voltage - Rated

Features

Mechatronics Fan Group

B5015H12B-BSR

0.2 A

Blower

28.12 g

0.062 lb

0.56 in H2O

139.5 Pa

Polybutylene Terephthalate (PBT)

5500 RPM

Square/Rounded

51 mm

0.112 m³/min

4 CFM

15.7 mm

CE, cUL, TUV, UL

40 dB(A)

2 Wire Leads

Ball

12 VDC

Thermal Overload Protector (TOP)

Mechatronics Fan Group

B5015H12B2-BSR

0.2 A

Blower

28.12 g

0.062 lb

0.56 in H2O

139.5 Pa

Polybutylene Terephthalate (PBT)

5500 RPM

Square/Rounded

51 mm

0.112 m³/min

4 CFM

15.7 mm

CE, cUL, TUV, UL

40 dB(A)

3 Wire Leads

Ball

12 VDC

Locked Rotor Sensor, Thermal Overload Protector (TOP)

Mechatronics Fan Group

B5015M12B-BSR

Blower

28.12 g

0.062 lb

0.35 in H2O

87.2 Pa

Polybutylene Terephthalate (PBT)

4500 RPM

Square/Rounded

51 mm

0.084 m³/min

3 CFM

15.7 mm

CE, cUL, TUV, UL

35 dB

2 Wire Leads

Ball

12 VDC

Thermal Overload Protector (TOP)

Mechatronics Fan Group

B5015E12B1-BSR-WS

Blower

28.12 g

0.062 lb

0.88 in H2O

219.2 Pa

Polybutylene Terephthalate (PBT)

6500 RPM

Square/Rounded

51 mm

0.14 mł/min

5 CFM

15.7 mm

CE, cUL, TUV, UL

45 dB(A)

4 Wire Leads

Ball

12 VDC

Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

Mechatronics Fan Group

B5015M24B-BSR

0.09 A

Blower

28.12 g

0.062 lb

0.35 in H2O

87.2 Pa

Polybutylene Terephthalate (PBT)

4500 RPM

Square/Rounded

51 mm

0.084 m³/min

3 CFM

15.7 mm

CE, cUL, TUV, UL

35 dB

2 Wire Leads

Ball

24 VDC

Thermal Overload Protector (TOP)

Mechatronics Fan Group

B5015M12B2-BSR

Blower

28.12 g

0.062 lb

0.35 in H2O

87.2 Pa

Polybutylene Terephthalate (PBT)

4500 RPM

Square/Rounded

51 mm

0.084 m³/min

3 CFM

15.7 mm

CE, cUL, TUV, UL

35 dB

3 Wire Leads

Ball

12 VDC

Locked Rotor Sensor, Thermal Overload Protector (TOP)

Mechatronics Fan Group

B5015E12B1-BSR

Blower

28.12 g

0.062 lb

0.88 in H2O

219.2 Pa

Polybutylene Terephthalate (PBT)

6500 RPM

Square/Rounded

51 mm

0.14 mł/min

5 CFM

15.7 mm

CE, cUL, TUV, UL

45 dB(A)

3 Wire Leads

Ball

12 VDC

Speed Sensor (Tach), Thermal Overload Protector (TOP)

Mechatronics Fan Group

B5015E24B-BSR

0.18 A

Blower

28.12 g

0.062 lb

0.88 in H2O

219.2 Pa

Polybutylene Terephthalate (PBT)

6500 RPM

Square/Rounded

51 mm

0.14 mł/min

5 CFM

15.7 mm

CE, cUL, TUV, UL

45 dB(A)

2 Wire Leads

Ball

24 VDC

Thermal Overload Protector (TOP)

Mechatronics Fan Group

B5015H05B-BSR

400 mA

Blower

28.12 g

0.062 lb

0.56 in H2O

139.5 Pa

Polybutylene Terephthalate (PBT)

5500 RPM

Square/Rounded

51 mm

0.112 m³/min

4 CFM

15.7 mm

CE, cUL, TUV, UL

40 dB(A)

2 Wire Leads

Ball

5 V

Thermal Overload Protector (TOP)

Mechatronics Fan Group

B5015E12B-BSR-CC

Blower

24.95 g

0.055 lb

0.88 in H2O

219.2 Pa

Polybutylene Terephthalate (PBT)

6500 RPM

Square/Rounded

51 mm

0.14 mł/min

5 CFM

15.7 mm

CE, cUL, TUV, UL

45 dB(A)

2 Wire Leads

Ball

12 VDC

Conformal Coating, Thermal Overload Protector (TOP)

Part	Current Rating (Amps)	Fan Type	Weight	Weight	Static Pressure	Static Pressure	Material - Blade	RPM	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Air Flow	Air Flow	Width [y]	Approval Agency	Noise	Termination	Bearing Type	Voltage - Rated	Features
Mechatronics Fan Group B5015H12B-BSR	0.2 A	Blower	28.12 g	0.062 lb	0.56 in H2O	139.5 Pa	Polybutylene Terephthalate (PBT)	5500 RPM	Square/Rounded	51 mm	51 mm	0.112 m³/min	4 CFM	15.7 mm	CE, cUL, TUV, UL	40 dB(A)	2 Wire Leads	Ball	12 VDC	Thermal Overload Protector (TOP)
Mechatronics Fan Group B5015H12B2-BSR	0.2 A	Blower	28.12 g	0.062 lb	0.56 in H2O	139.5 Pa	Polybutylene Terephthalate (PBT)	5500 RPM	Square/Rounded	51 mm	51 mm	0.112 m³/min	4 CFM	15.7 mm	CE, cUL, TUV, UL	40 dB(A)	3 Wire Leads	Ball	12 VDC	Locked Rotor Sensor, Thermal Overload Protector (TOP)
Mechatronics Fan Group B5015M12B-BSR		Blower	28.12 g	0.062 lb	0.35 in H2O	87.2 Pa	Polybutylene Terephthalate (PBT)	4500 RPM	Square/Rounded	51 mm	51 mm	0.084 m³/min	3 CFM	15.7 mm	CE, cUL, TUV, UL	35 dB	2 Wire Leads	Ball	12 VDC	Thermal Overload Protector (TOP)
Mechatronics Fan Group B5015E12B1-BSR-WS		Blower	28.12 g	0.062 lb	0.88 in H2O	219.2 Pa	Polybutylene Terephthalate (PBT)	6500 RPM	Square/Rounded	51 mm	51 mm	0.14 mł/min	5 CFM	15.7 mm	CE, cUL, TUV, UL	45 dB(A)	4 Wire Leads	Ball	12 VDC	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)
Mechatronics Fan Group B5015M24B-BSR	0.09 A	Blower	28.12 g	0.062 lb	0.35 in H2O	87.2 Pa	Polybutylene Terephthalate (PBT)	4500 RPM	Square/Rounded	51 mm	51 mm	0.084 m³/min	3 CFM	15.7 mm	CE, cUL, TUV, UL	35 dB	2 Wire Leads	Ball	24 VDC	Thermal Overload Protector (TOP)
Mechatronics Fan Group B5015M12B2-BSR		Blower	28.12 g	0.062 lb	0.35 in H2O	87.2 Pa	Polybutylene Terephthalate (PBT)	4500 RPM	Square/Rounded	51 mm	51 mm	0.084 m³/min	3 CFM	15.7 mm	CE, cUL, TUV, UL	35 dB	3 Wire Leads	Ball	12 VDC	Locked Rotor Sensor, Thermal Overload Protector (TOP)
Mechatronics Fan Group B5015E12B1-BSR		Blower	28.12 g	0.062 lb	0.88 in H2O	219.2 Pa	Polybutylene Terephthalate (PBT)	6500 RPM	Square/Rounded	51 mm	51 mm	0.14 mł/min	5 CFM	15.7 mm	CE, cUL, TUV, UL	45 dB(A)	3 Wire Leads	Ball	12 VDC	Speed Sensor (Tach), Thermal Overload Protector (TOP)
Mechatronics Fan Group B5015E24B-BSR	0.18 A	Blower	28.12 g	0.062 lb	0.88 in H2O	219.2 Pa	Polybutylene Terephthalate (PBT)	6500 RPM	Square/Rounded	51 mm	51 mm	0.14 mł/min	5 CFM	15.7 mm	CE, cUL, TUV, UL	45 dB(A)	2 Wire Leads	Ball	24 VDC	Thermal Overload Protector (TOP)
Mechatronics Fan Group B5015H05B-BSR	400 mA	Blower	28.12 g	0.062 lb	0.56 in H2O	139.5 Pa	Polybutylene Terephthalate (PBT)	5500 RPM	Square/Rounded	51 mm	51 mm	0.112 m³/min	4 CFM	15.7 mm	CE, cUL, TUV, UL	40 dB(A)	2 Wire Leads	Ball	5 V	Thermal Overload Protector (TOP)
Mechatronics Fan Group B5015E12B-BSR-CC		Blower	24.95 g	0.055 lb	0.88 in H2O	219.2 Pa	Polybutylene Terephthalate (PBT)	6500 RPM	Square/Rounded	51 mm	51 mm	0.14 mł/min	5 CFM	15.7 mm	CE, cUL, TUV, UL	45 dB(A)	2 Wire Leads	Ball	12 VDC	Conformal Coating, Thermal Overload Protector (TOP)
