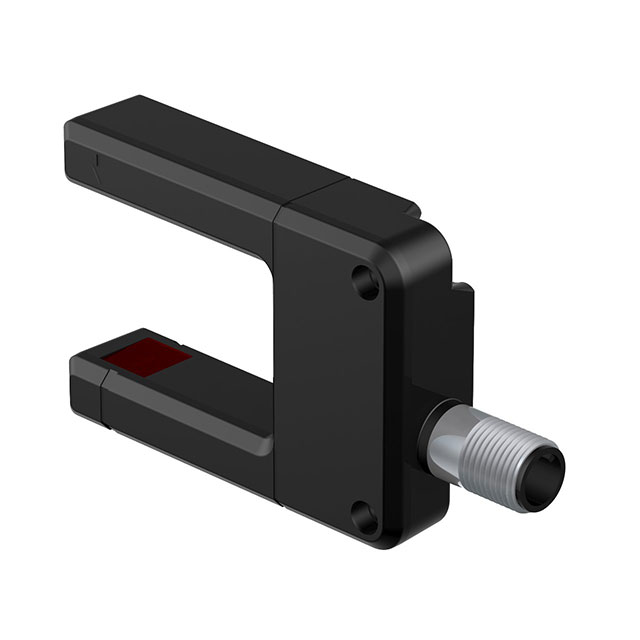

SLO30VB6YQ
ActiveBANNER ENGINEERING
SLO30 SERIES: SLOT SENSOR W/O SENSITIVITY ADJUSTME
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SLO30VB6YQ
ActiveBANNER ENGINEERING
SLO30 SERIES: SLOT SENSOR W/O SENSITIVITY ADJUSTME
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SLO30VB6YQ |
|---|---|
| Connection Method | Connector |
| Ingress Protection | NEMA 6P, IP67 |
| Light Source | Infrared (890nm) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | NPN/PNP - Dark-ON/Light-ON |
| Response Time | 0.3 ms |
| Sensing Distance | 1.181 in |
| Sensing Distance | 30 mm |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SLO30VB6 Series
Optical Sensor 1.181" (30mm) NPN/PNP - Dark-ON/Light-ON
Documents
Technical documentation and resources
