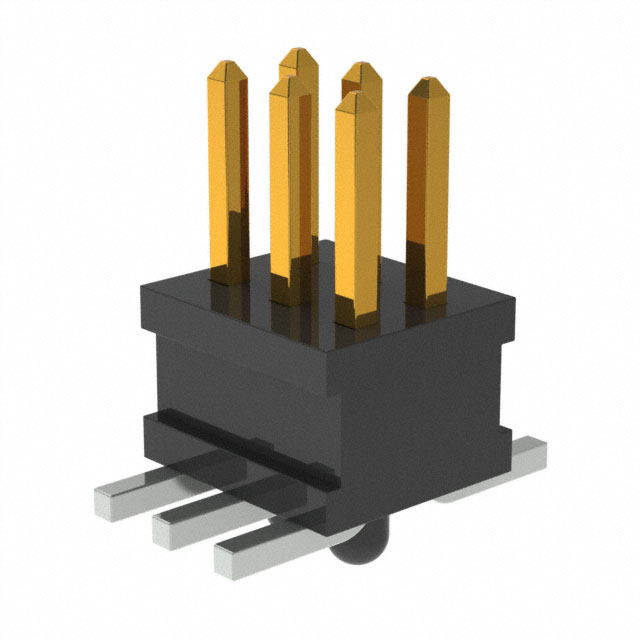

FTSH-103-05-L-DV-A

Active

Samtec Inc.

CONN HEADER SMD 6POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFW Series Other Related Documents 03 FTSH Datasheet +2

FTSH-103-05-L-DV-A

Active

Samtec Inc.

CONN HEADER SMD 6POS 1.27MM

Deep-Dive with AI

DocumentsFW Series Other Related Documents 03 FTSH Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTSH-103-05-L-DV-A

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	0.17 in
Contact Length - Mating	4.32 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	2.51 mm
Insulation Height	0.099 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

FTSH-103 Series

Part	Insulation Color	Number of Positions	Style	Fastening Type	Mounting Type	Contact Finish - Mating	Insulation Material	Shrouding	Pitch - Mating	Pitch - Mating	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Material	Contact Type	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Termination	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Number of Rows	Features	Contact Length - Mating [x]	Contact Length - Mating [x]
Samtec Inc. FTSH-103-04-S-D	Black	6	Board to Board Cable	Push-Pull	Through Hole	Gold	Liquid Crystal Polymer (LCP)	Unshrouded	0.05 in	1.27 mm	Square	-55 °C	125 °C	Tin	Phosphor Bronze	Male Pin	2.51 mm	0.099 in	All	30 Áin	0.76 Ám	UL94 V-0	8.6 mm	0.339 in	Solder	Cuttable Header	0.05 in	1.27 mm	0.09 "	2.29 mm	0.15 in	3.81 mm	2
Samtec Inc. FTSH-103-02-F-DH-C	Black	6	Board to Board Cable	Push-Pull	Surface Mount Right Angle	Gold	Liquid Crystal Polymer (LCP)	Unshrouded	0.05 in	1.27 mm	Square	-55 °C	125 °C	Tin	Phosphor Bronze	Male Pin	3.43 mm	0.135 "	All	3 µin	0.076 µm	UL94 V-0			Solder	Cuttable Header	0.05 in	1.27 mm					2	Pick and Place	1.9 mm	0.075 in
Samtec Inc. FTSH-103-01-SM-DV-A-TR	Black	6	Board to Board Cable	Push-Pull	Surface Mount	Gold	Liquid Crystal Polymer (LCP)	Unshrouded	0.05 in	1.27 mm	Square	-55 °C	125 °C	Tin	Phosphor Bronze	Male Pin	2.51 mm	0.099 in	All	30 Áin	0.76 Ám	UL94 V-0			Solder	Cuttable Header	0.05 in	1.27 mm			0.12 in	3.05 mm	2	Board Guide
Samtec Inc. FTSH-103-04-F-DH	Black	6	Board to Board Cable	Push-Pull	Surface Mount Right Angle	Gold	Liquid Crystal Polymer (LCP)	Unshrouded	0.05 in	1.27 mm	Square	-55 °C	125 °C	Tin	Phosphor Bronze	Male Pin	3.43 mm	0.135 "	All	3 µin	0.076 µm	UL94 V-0			Solder	Cuttable Header	0.05 in	1.27 mm			0.15 in	3.81 mm	2
Samtec Inc. FTSH-103-03-L-D-RA	Black	6	Board to Board Cable	Push-Pull	Through Hole Right Angle	Gold	Liquid Crystal Polymer (LCP)	Unshrouded	0.05 in	1.27 mm	Square	-55 °C	125 °C	Tin	Phosphor Bronze	Male Pin	3.43 mm	0.135 "	All	10 çin	0.25 çm	UL94 V-0			Solder	Cuttable Header	0.05 in	1.27 mm	0.09 "	2.29 mm	0.065 in	1.65 mm	2
Samtec Inc. FTSH-103-01-FM-D
Samtec Inc. FTSH-103-03-F-D	Black	6	Board to Board Cable	Push-Pull	Through Hole	Gold	Liquid Crystal Polymer (LCP)	Unshrouded	0.05 in	1.27 mm	Square	-55 °C	125 °C	Tin	Phosphor Bronze	Male Pin	2.51 mm	0.099 in	All	3 µin	0.076 µm	UL94 V-0	6.48 mm	0.255 in	Solder	Cuttable Header	0.05 in	1.27 mm	0.09 "	2.29 mm	0.065 in	1.65 mm	2
Samtec Inc. FTSH-103-02-S-D	Black	6	Board to Board Cable	Push-Pull	Through Hole	Gold	Liquid Crystal Polymer (LCP)	Unshrouded	0.05 in	1.27 mm	Square	-55 °C	125 °C	Tin	Phosphor Bronze	Male Pin	2.51 mm	0.099 in	All	30 Áin	0.76 Ám	UL94 V-0	6.73 mm	0.265 in	Solder	Cuttable Header	0.05 in	1.27 mm	0.09 "	2.29 mm			2		1.9 mm	0.075 in
Samtec Inc. FTSH-103-03-L-DV	Black	6	Board to Board Cable	Push-Pull	Surface Mount	Gold	Liquid Crystal Polymer (LCP)	Unshrouded	0.05 in	1.27 mm	Square	-55 °C	125 °C	Tin	Phosphor Bronze	Male Pin	2.51 mm	0.099 in	All	10 çin	0.25 çm	UL94 V-0			Solder	Cuttable Header	0.05 in	1.27 mm			0.065 in	1.65 mm	2
Samtec Inc. FTSH-103-05-L-DV-A	Black	6	Board to Board Cable	Push-Pull	Surface Mount	Gold	Liquid Crystal Polymer (LCP)	Unshrouded	0.05 in	1.27 mm	Square	-55 °C	125 °C	Tin	Phosphor Bronze	Male Pin	2.51 mm	0.099 in	All	10 çin	0.25 çm	UL94 V-0			Solder	Cuttable Header	0.05 in	1.27 mm			0.17 in	4.32 mm	2	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.45
