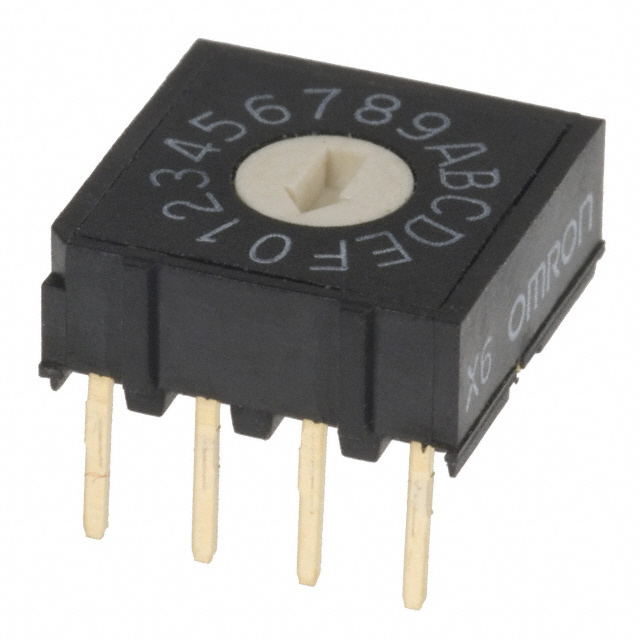

A6R-161RF

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

A6R-161RF

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6R-161RF

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Circuit	Hexadecimal
Current Rating (Amps)	25 mA
Electrical Life	5000 Steps
Features	Sealed
Height Above Board	0.177 in
Height Above Board	4.5 mm
Length [x]	0.386 "
Length [x]	9.8 mm
Mounting Type	Through Hole
Number of Positions	16
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	False

A6R Series

Part	Actuator Level	Height Above Board	Height Above Board	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Pitch [x]	Pitch	Pitch [x]	Voltage Rating	Actuator Type	Length [x]	Length [x]	Number of Positions	Current Rating (Amps)	Mounting Type	Termination Style	Number of Positions	Features	Height Above Board [z]	Height Above Board [z]
Omron Electronics Inc-EMC Div A6RS-102RF	Flush Recessed	4.7 mm	0.185 in	5000 Steps	-25 °C	80 C	BCD	0.1 in	Full	2.54 mm	24 VDC	Rotary for Tool	0.386 "	9.8 mm	10	25 mA	Surface Mount	Gull Wing
Omron Electronics Inc-EMC Div A6RV-161RF	Flush Recessed	9.9 mm	0.39 in	5000 Steps	-25 °C	80 C	Hexadecimal	0.1 in	Full	2.54 mm	24 VDC	Rotary for Tool	0.386 "	9.8 mm		25 mA	Through Hole Right Angle	PC Pin	16	Sealed
Omron Electronics Inc-EMC Div A6R-101RS	Raised			5000 Steps	-25 °C	80 C	BCD	0.1 in	Full	2.54 mm	24 VDC	Rotary with Shaft	0.386 "	9.8 mm	10	25 mA	Through Hole	PC Pin		Sealed	0.465 "	11.8 mm
Omron Electronics Inc-EMC Div A6R-161RF	Flush Recessed	4.5 mm	0.177 in	5000 Steps	-25 °C	80 C	Hexadecimal	0.1 in	Full	2.54 mm	24 VDC	Rotary for Tool	0.386 "	9.8 mm		25 mA	Through Hole	PC Pin	16	Sealed
Omron Electronics Inc-EMC Div A6R-102RF	Flush Recessed	4.5 mm	0.177 in	5000 Steps	-25 °C	80 C	BCD	0.1 in	Full	2.54 mm	24 VDC	Rotary for Tool	0.386 "	9.8 mm	10	25 mA	Through Hole	PC Pin		Sealed
Omron Electronics Inc-EMC Div A6RS-161RS-P	Raised	12 mm	0.472 in	5000 Steps	-25 °C	80 C	Hexadecimal	0.1 in	Full	2.54 mm	24 VDC	Rotary with Shaft	0.386 "	9.8 mm		25 mA	Surface Mount	Gull Wing	16
Omron Electronics Inc-EMC Div A6RS-101RF	Flush Recessed	4.7 mm	0.185 in	5000 Steps	-25 °C	80 C	BCD	0.1 in	Full	2.54 mm	24 VDC	Rotary for Tool	0.386 "	9.8 mm	10	25 mA	Surface Mount	Gull Wing
Omron Electronics Inc-EMC Div A6RS-161RS	Raised	12 mm	0.472 in	5000 Steps	-25 °C	80 C	Hexadecimal	0.1 in	Full	2.54 mm	24 VDC	Rotary with Shaft	0.386 "	9.8 mm		25 mA	Surface Mount	Gull Wing	16
Omron Electronics Inc-EMC Div A6R-101RF	Flush Recessed	4.5 mm	0.177 in	5000 Steps	-25 °C	80 C	BCD	0.1 in	Full	2.54 mm	24 VDC	Rotary for Tool	0.386 "	9.8 mm	10	25 mA	Through Hole	PC Pin		Sealed
Omron Electronics Inc-EMC Div A6RV-102RF	Flush Recessed	9.9 mm	0.39 in	5000 Steps	-25 °C	80 C	BCD	0.1 in	Full	2.54 mm	24 VDC	Rotary for Tool	0.386 "	9.8 mm	10	25 mA	Through Hole Right Angle	PC Pin		Sealed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.38
		10	$ 5.17
		25	$ 4.75
		100	$ 4.17
		250	$ 3.82
		500	$ 3.57
		1000	$ 3.33
		2500	$ 3.04

Description

General part information

A6R Series

Dip Switch Hexadecimal 16 Position Through Hole Rotary for Tool Actuator 25mA 24VDC
