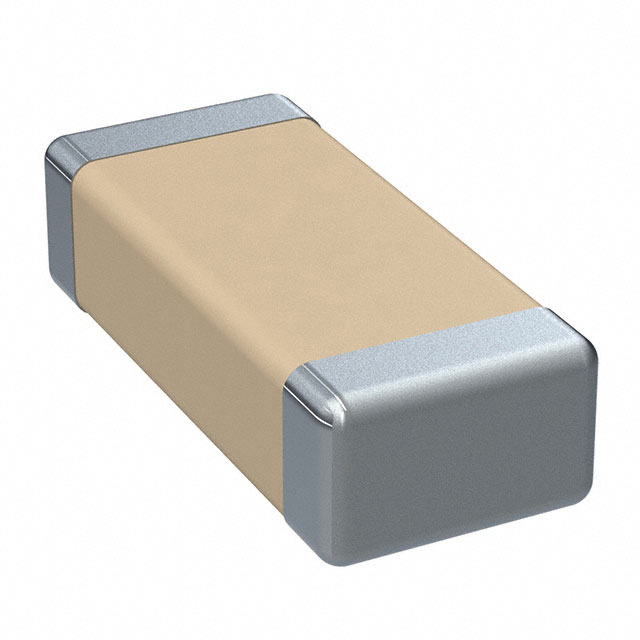

C1206Y223J5RAC7800

Active

KEMET

CERAMIC CAPACITOR, CERAMIC, 50V, X7R, -/+15PPM/CEL TC, 0.022UF, 1306

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC1206Y223J5RACTU Datasheet

C1206Y223J5RAC7800

Active

KEMET

CERAMIC CAPACITOR, CERAMIC, 50V, X7R, -/+15PPM/CEL TC, 0.022UF, 1306

Deep-Dive with AI

DocumentsC1206Y223J5RACTU Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C1206Y223J5RAC7800

Applications	Boardflex Sensitive
Capacitance	0.022 µF
Features	Soft Termination, Floating Electrode
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Temperature Coefficient	X7R
Thickness (Max) [Max]	0.039 in
Thickness (Max) [Max]	0.98 mm
Tolerance	5 %
Voltage - Rated	50 VDC

C1206Y Series

Part	Applications	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Voltage - Rated	Mounting Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Capacitance	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Features	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Ratings
KEMET C1206Y332K5RAC7800	Boardflex Sensitive	0.13 in 3.3 mm	0.063 in 1.6 mm	10 %	50 VDC	MLCC Surface Mount	0.035 in	0.88 mm	3300 pF	1206 (3216 Metric)	-55 °C	125 °C	Floating Electrode Soft Termination	X7R
KEMET C1206Y473J5RAC7800	Boardflex Sensitive	3.2 mm	1.6 mm	5 %	50 VDC	MLCC Surface Mount	0.039 in	0.98 mm		1206 (3216 Metric)	-55 °C	125 °C	Floating Electrode Soft Termination	X7R	0.063 in	0.126 "
KEMET C1206Y222K5RACTU	Boardflex Sensitive	0.13 in 3.3 mm	0.063 in 1.6 mm	10 %	50 VDC	MLCC Surface Mount	0.035 in	0.88 mm	2200 pF	1206 (3216 Metric)	-55 °C	125 °C	Floating Electrode Soft Termination	X7R
KEMET C1206Y223J5RAC7800	Boardflex Sensitive	3.2 mm	1.6 mm	5 %	50 VDC	MLCC Surface Mount	0.039 in	0.98 mm	0.022 µF	1206 (3216 Metric)	-55 °C	125 °C	Floating Electrode Soft Termination	X7R	0.063 in	0.126 "
KEMET C1206Y223K1RAC7800	Boardflex Sensitive	0.13 in 3.3 mm	0.063 in 1.6 mm	10 %	100 V	MLCC Surface Mount	0.035 in	0.88 mm	0.022 µF	1206 (3216 Metric)	-55 °C	125 °C	Floating Electrode Soft Termination	X7R
KEMET C1206Y104K5RACAUTO	Automotive Boardflex Sensitive	0.13 in 3.3 mm	0.063 in 1.6 mm	10 %	50 VDC	MLCC Surface Mount	0.039 in	0.98 mm	100000 pF	1206 (3216 Metric)	-55 °C	125 °C	Floating Electrode Soft Termination	X7R			AEC-Q200
KEMET C1206Y473K5RAC7800	Boardflex Sensitive	0.13 in 3.3 mm	0.063 in 1.6 mm	10 %	50 VDC	MLCC Surface Mount	0.035 in	0.88 mm		1206 (3216 Metric)	-55 °C	125 °C	Floating Electrode Soft Termination	X7R
KEMET C1206Y153K2RAC7800	Boardflex Sensitive	0.13 in 3.3 mm	0.063 in 1.6 mm	10 %	200 V	MLCC Surface Mount	0.035 in	0.88 mm	15000 pF	1206 (3216 Metric)	-55 °C	125 °C	Floating Electrode Soft Termination	X7R
KEMET C1206Y104K9RACTU	Boardflex Sensitive	0.13 in 3.3 mm	0.063 in 1.6 mm	10 %	6.3 V	MLCC Surface Mount	0.039 in	0.98 mm	100000 pF	1206 (3216 Metric)	-55 °C	125 °C	Floating Electrode Soft Termination	X7R
KEMET C1206Y103J9RAC7800	Boardflex Sensitive	3.2 mm	1.6 mm	5 %	6.3 V	MLCC Surface Mount	0.039 in	0.98 mm	10000 pF	1206 (3216 Metric)	-55 °C	125 °C	Floating Electrode Soft Termination	X7R	0.063 in	0.126 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 0.15

Description

General part information

C1206Y Series

0.022 µF ±5% 50V Ceramic Capacitor X7R 1206 (3216 Metric)
