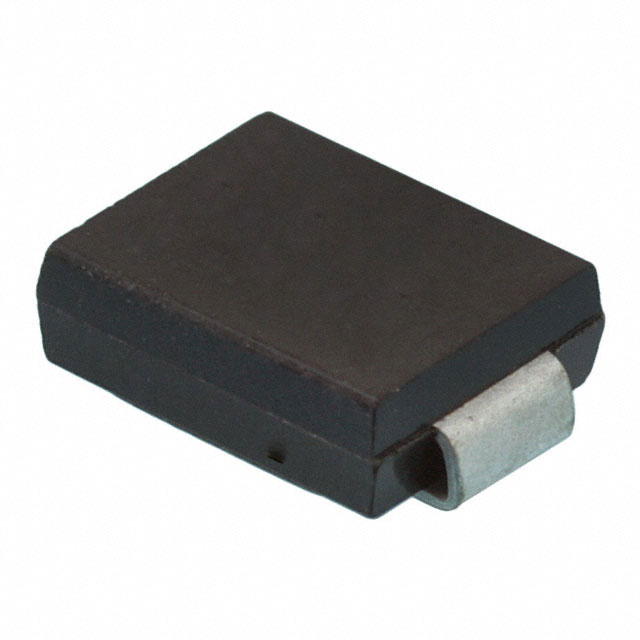

CD214L-T16ALF

Obsolete

Bourns Inc.

TVS DIODE 16VWM 26VC SMC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CD214L-T16ALF

Obsolete

Bourns Inc.

TVS DIODE 16VWM 26VC SMC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CD214L-T16ALF

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	115.4 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SMC, DO-214AB
Power - Peak Pulse	3000 W
Power - Peak Pulse	3 kW
Power Line Protection	False
Supplier Device Package	SMC (DO-214AB)
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Clamping (Max) @ Ipp [Max]	26 V
Voltage - Reverse Standoff (Typ)	16 V

CD214L Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Breakdown (Min) [Min]	Voltage - Reverse Standoff (Typ)	Package / Case	Applications	Power - Peak Pulse	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Type	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Mounting Type	Supplier Device Package	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp
Bourns Inc. CD214L-T14CALF	-55 °C	150 °C	15.6 V	14 V	DO-214AB SMC	General Purpose	3000 W	3 kW	129.4 A	Zener	1	23.2 V	Surface Mount	SMC (DO-214AB)
Bourns Inc. CD214L-T110ALF	-55 °C	150 °C	122 V	110 V	DO-214AB SMC	General Purpose	3000 W	3 kW	16.8 A	Zener		177 V	Surface Mount	SMC (DO-214AB)	1
Bourns Inc. CD214L-T150ALF	-55 °C	150 °C	167 V	150 V	DO-214AB SMC	General Purpose	3000 W	3 kW	12.4 A	Zener		243 V	Surface Mount	SMC (DO-214AB)	1
Bourns Inc. CD214L-T48ALF	-55 °C	150 °C	53.3 V	48 V	DO-214AB SMC	General Purpose	3000 W	3 kW	38.8 A	Zener		77.4 V	Surface Mount	SMC (DO-214AB)	1
Bourns Inc. CD214L-T24ALF	-55 °C	150 °C	26.7 V	24 V	DO-214AB SMC	General Purpose	3000 W	3 kW	77.2 A	Zener		38.9 V	Surface Mount	SMC (DO-214AB)	1
Bourns Inc. CD214L-T16CALF	-55 °C	150 °C		16 V	DO-214AB SMC	General Purpose	3000 W	3 kW	115.4 A	Zener	1	26 V	Surface Mount	SMC (DO-214AB)
Bourns Inc. CD214L-T11CALF	-55 °C	150 °C	12.2 V	11 V	DO-214AB SMC	General Purpose	3000 W	3 kW	164.8 A	Zener	1		Surface Mount	SMC (DO-214AB)		18.2 V
Bourns Inc. CD214L-T16ALF	-55 °C	150 °C		16 V	DO-214AB SMC	General Purpose	3000 W	3 kW	115.4 A	Zener		26 V	Surface Mount	SMC (DO-214AB)	1
Bourns Inc. CD214L-T60CALF	-55 °C	150 °C	66.7 V	60 V	DO-214AB SMC	General Purpose	3000 W	3 kW	31 A	Zener	1	96.8 V	Surface Mount	SMC (DO-214AB)
Bourns Inc. CD214L-T40CALF	-55 °C	150 °C	44.4 V	40 V	DO-214AB SMC	General Purpose	3000 W	3 kW		Zener	1	64.5 V	Surface Mount	SMC (DO-214AB)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CD214L Series

26V Clamp 115.4A Ipp Tvs Diode Surface Mount SMC (DO-214AB)
