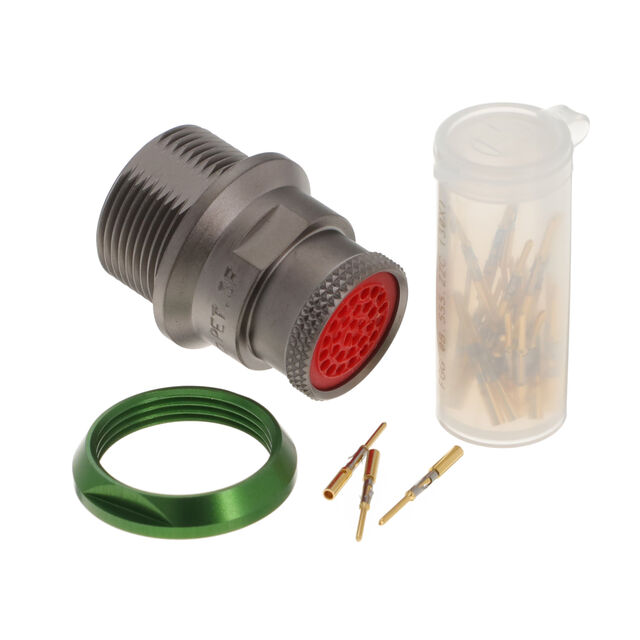

PET.3F.330.XLC

Active

LEMO

CONN RCPT MALE 30POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT MALE 30POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	PET.3F.330.XLC

Applications	Aerospace
Cable Opening [custom]	0.63 in
Cable Opening [custom]	16 mm
Color	Gray
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	3.5 A
Fastening Type	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	30
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-15 °C
Orientation	T
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	330
Shielding	Shielded
Termination	Crimp

CONN RCPT MALE 30POS GOLD CRIMP

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Mounting Feature	Shielding	Primary Material	Material Flammability Rating	Contact Finish - Mating	Termination	Color	Insert Material	Contact Material	Fastening Type	Cable Opening [custom]	Cable Opening [custom]	Current Rating (Amps)	Shell Finish	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Number of Positions	Connector Type	Shell Size - Insert	Ingress Protection
LEMO PET.3F.330.XLC	1 µm	39.4 µin	Aerospace	Bulkhead - Front Side Nut	Shielded	Metal	UL94 V-0	Gold	Crimp	Gray	Polyetheretherketone (PEEK)	Brass	Push-Pull	0.63 in	16 mm	3.5 A	Nickel	Aluminum Alloy	200 °C	-15 °C	T	30	Male Pins, Receptacle	330	IP67 - Dust Tight, Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Circular Connector Receptacle, Male Pins Crimp
