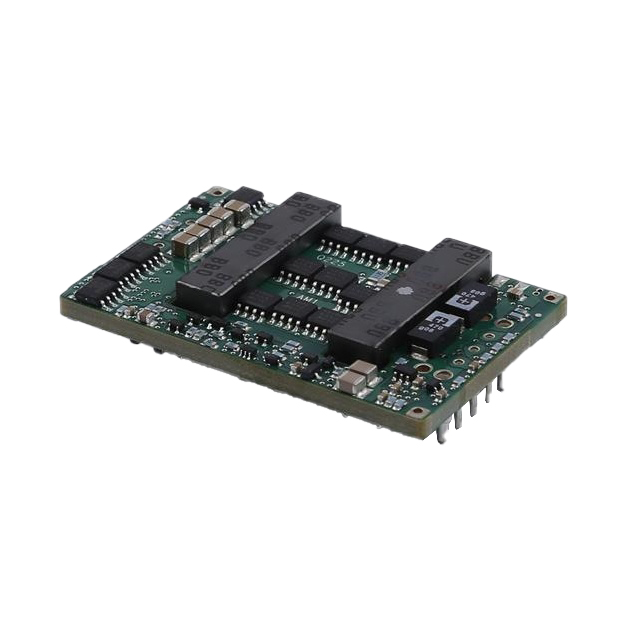

QPS4033N055N25

Obsolete

NetPower

DC DC CONVERTER 3.3V 182W

Search across all available documentation for this part.

Obsolete

NetPower

DC DC CONVERTER 3.3V 182W

Technical Specifications

Parameters and characteristics for this part

Specification	QPS4033N055N25

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max)	55 A
Efficiency	93 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Power (Watts)	182 W
Size / Dimension [x]	2.28 in
Size / Dimension [x]	57.9 mm
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Supplier Device Package	Quarter Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	3.3 V

DC DC CONVERTER 3.3V 182W

Part	Voltage - Output 1	Number of Outputs	Voltage - Input (Max) [Max]	Features	Package / Case	Type	Voltage - Isolation	Control Features	Supplier Device Package	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Efficiency	Voltage - Input (Min) [Min]
NetPower QPS4033N055N25	3.3 V	1	75 V	Adjustable Output, Remote On/Off, Remote Sense	Quarter Brick	Isolated Module	2250 VDC	Active Low, Enable	Quarter Brick	ITE (Commercial)	85 °C	-40 °C	55 A	Through Hole	10.2 mm	1.45 in	2.28 in	36.8 mm	57.9 mm	0.4 "	182 W	93 %	36 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 3.3V 55A 36V - 75V Input
