1410326-3

Active

TE Connectivity AMP Connectors

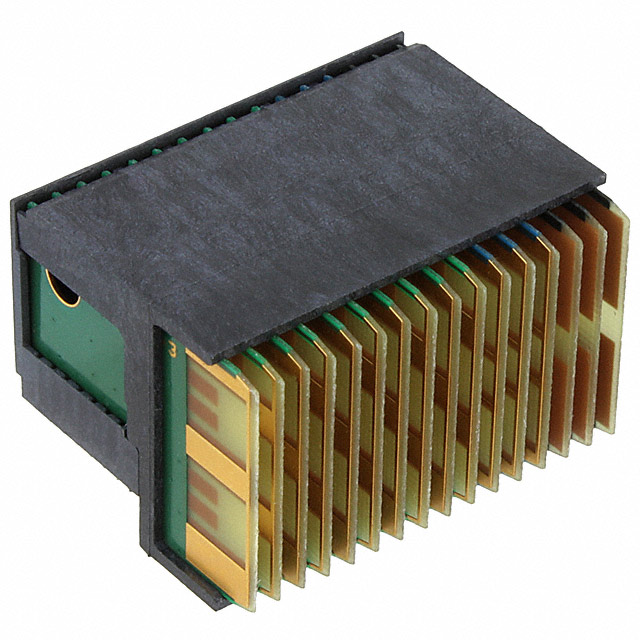

CONN PLUG MULTIGIG 112P EDGE MNT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG MULTIGIG 112P EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	1410326-3

Color	Black
Connector Style	MULTIG, Center
Connector Type	Plug, Male Blades
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Layout, Typical [custom]	20
Contact Layout, Typical [custom]	3
Contact Layout, Typical [custom]	18
Contact Layout, Typical [custom]	20
Contact Layout, Typical [custom]	31
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	16
Number of Positions	112
Number of Positions Loaded	112
Number of Rows	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Solder
Voltage Rating	50 V

CONN PLUG MULTIGIG 112P EDGE MNT

Part	Connector Style	Number of Positions	Number of Rows	Contact Finish	Number of Positions Loaded	Connector Usage	Color	Voltage Rating	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Termination	Pitch [x]	Pitch [x]	Number of Columns
TE Connectivity AMP Connectors 1410326-3	Center, MULTIG	112	7	Gold	112	Daughtercard	Black	50 V	Board Edge, Right Angle, Through Hole	50 µin	1.27 µm	Plug, Male Blades	UL94 V-0	105 ░C	-55 °C	20	3	18	20	31	Solder	0.071 in	1.8 mm	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

112 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black MULTIGIG, Center
