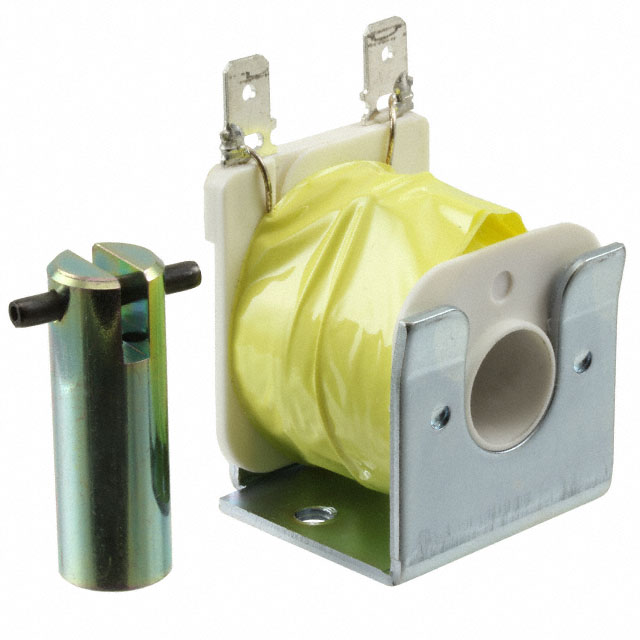

DSOL-1333-48A

Active

Delta Electronics

SOLENOID PULL CONTINUOUS 48V

Search across all available documentation for this part.

Active

Delta Electronics

SOLENOID PULL CONTINUOUS 48V

Technical Specifications

Parameters and characteristics for this part

Part	Stroke Length	Stroke Length	Type	Power (Watts)	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Voltage - Rated	Technology	Shaft Detail	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Termination Style	Duty Cycle	DC Resistance (DCR)
Delta Electronics DSOL-1333-48A	0.5 in	12.7 mm	Open Frame (Pull)	10 W	12.7 mm	0.5 in	48 VAC	Electromechanical	Clevis	1.38 in	1.28 in	35.05 mm	31.75 mm	1.25 "	32.51 mm	Chassis Mount	Quick Connect	Continuous	224 Ohm
Delta Electronics DSOL-1333-36A	0.5 in	12.7 mm	Open Frame (Pull)	10 W	12.7 mm	0.5 in	36 VAC	Electromechanical	Clevis	1.38 in	1.28 in	35.05 mm	31.75 mm	1.25 "	32.51 mm	Chassis Mount	Quick Connect	Continuous	130 Ohm
Delta Electronics DSOL-1333-18A	0.5 in	12.7 mm	Open Frame (Pull)	10 W	12.7 mm	0.5 in	18 VAC	Electromechanical	Clevis	1.38 in	1.28 in	35.05 mm	31.75 mm	1.25 "	32.51 mm	Chassis Mount	Quick Connect	Continuous	30 Ohm
Delta Electronics DSOL-1333-12A	0.5 in	12.7 mm	Open Frame (Pull)	10 W	12.7 mm	0.5 in	12 VAC	Electromechanical	Clevis	1.38 in	1.28 in	35.05 mm	31.75 mm	1.25 "	32.51 mm	Chassis Mount	Quick Connect	Continuous	13.5 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	120	$ 15.08

General part information

Continuous Duty Solenoid Open Frame (Pull) Type 0.500" (12.70mm) Stroke 48VAC Chassis Mount
