ASX20012

Obsolete

Panasonic Electric Works

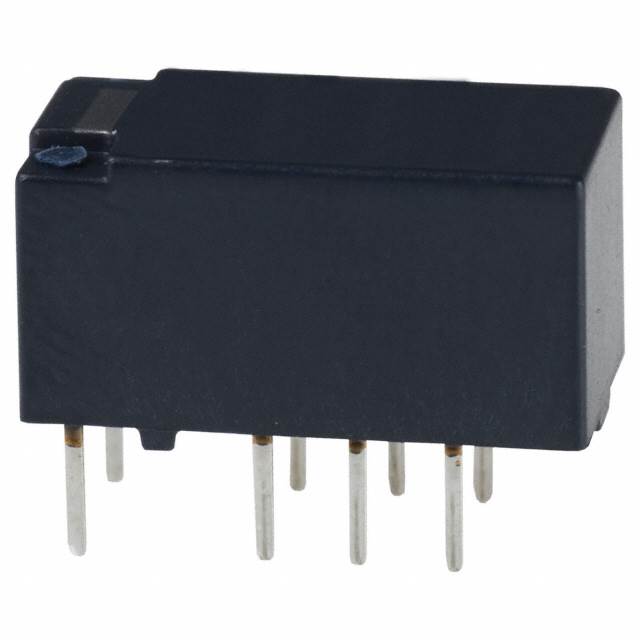

RELAY TELECOM DPDT 10MA 12V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY TELECOM DPDT 10MA 12V

Technical Specifications

Parameters and characteristics for this part

Specification	ASX20012

Approval Agency	CSA, UR
Coil Current	4.2 mA
Coil Resistance	2.88 kOhms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Palladium (AgPd), Gold (Au)
Contact Rating (Current)	10 mA
Load - Max Switching	100 W
Mounting Type	Through Hole
Must Operate Voltage	9.6 VDC
Must Release Voltage	1.2 VDC
Operate Time	5 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	5 ms
Switching Voltage	10 VDC
Termination Style	PC Pin

Part	Must Operate Voltage	Approval Agency	Must Release Voltage	Operate Time	Switching Voltage	Mounting Type	Load - Max Switching	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Contact Rating (Current)	Contact Form	Contact Material	Coil Resistance	Termination Style	Release Time	Coil Type	Relay Type
Panasonic Electric Works ASX20012	9.6 VDC	CSA UR	1.2 VDC	5 ms	10 VDC	Through Hole	100 W	12 VDC	-40 °C	70 °C	4.2 mA	10 mA	DPDT (2 Form C)	Gold (Au) Silver Palladium (AgPd)	2.88 kOhms	PC Pin	5 ms	Non Latching	Telecom
Panasonic Electric Works ASX200A4H	3.6 VDC	CSA UR	0.45 VDC	5 ms	10 VDC	Surface Mount	100 W	4.5 VDC	-40 °C	70 °C	11.1 mA	10 mA	DPDT (2 Form C)	Gold (Au) Silver Palladium (AgPd)	405 Ohms	Gull Wing	5 ms	Non Latching	Telecom
Panasonic Electric Works ASX200A12	9.6 VDC	CSA UR	1.2 VDC	5 ms	10 VDC	Surface Mount	100 W	12 VDC	-40 °C	70 °C	4.2 mA	10 mA	DPDT (2 Form C)	Gold (Au) Silver Palladium (AgPd)	2.88 kOhms	Gull Wing	5 ms	Non Latching	Telecom
Panasonic Electric Works ASX200A03	2.4 VDC	CSA UR	0.3 VDC	5 ms	10 VDC	Surface Mount	100 W		-40 °C	70 °C	16.7 mA	10 mA	DPDT (2 Form C)	Gold (Au) Silver Palladium (AgPd)	180 Ohms	Gull Wing	5 ms	Non Latching	Telecom
