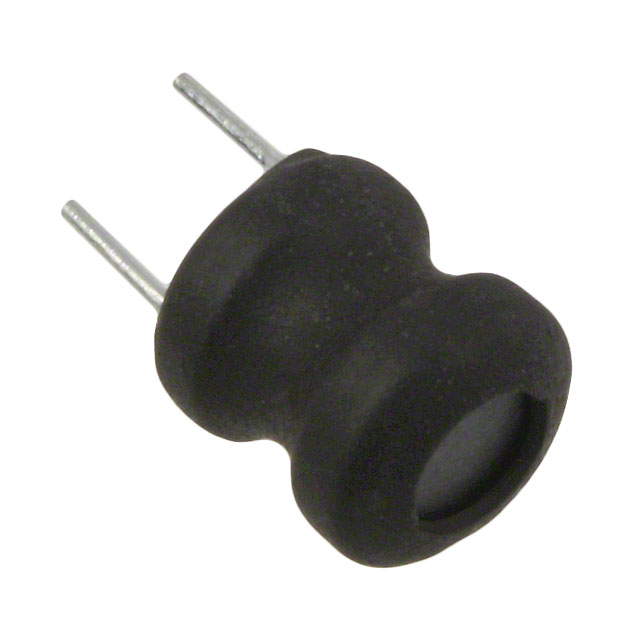

RLB0912-4R7ML

Active

Bourns Inc.

FIXED IND 4.7UH 4A 22 MOHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RLB0912-4R7ML

Active

Bourns Inc.

FIXED IND 4.7UH 4A 22 MOHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RLB0912-4R7ML

Current - Saturation (Isat)	5 A
Current Rating (Amps)	4 A
Frequency - Self Resonant	41 MHz
Height - Seated (Max) [Max] [z]	11 mm
Height - Seated (Max) [Max] [z]	0.433 in
Inductance	4.7 ÁH
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Vertical Cylinder
Q @ Freq	7.96 MHz, 30
Shielding	Unshielded
Size / Dimension [diameter]	8.7 mm
Size / Dimension [diameter]	0.343 in
Tolerance	20 %
Type	Wirewound, Drum Core

RLB0912 Series

Part	DC Resistance (DCR) [Max]	Tolerance	Frequency - Self Resonant	Material - Core	Package / Case	Current Rating (Amps)	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Q @ Freq	Shielding	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Mounting Type	Current - Saturation (Isat)	DC Resistance (DCR)
Bourns Inc. RLB0912-680KL	280 mOhm	10 %	9 MHz	Ferrite	Radial Vertical Cylinder	1.35 A	68 µH	125 °C	-40 °C	11 mm	0.433 in	2.52 MHz 35	Unshielded	8.7 mm	0.343 in	Drum Core Wirewound	Through Hole
Bourns Inc. RLB0912-221KL	720 mOhm	10 %	4.5 MHz	Ferrite	Radial Vertical Cylinder	800 mA	220 µH	125 °C	-40 °C	11 mm	0.433 in	30 796 kHz	Unshielded	8.7 mm	0.343 in	Drum Core Wirewound	Through Hole	800 mA
Bourns Inc. RLB0912-4R7ML		20 %	41 MHz	Ferrite	Radial Vertical Cylinder	4 A	4.7 ÁH	125 °C	-40 °C	11 mm	0.433 in	7.96 MHz 30	Unshielded	8.7 mm	0.343 in	Drum Core Wirewound	Through Hole	5 A
Bourns Inc. RLB0912-102KL	4.3 Ohm	10 %	1.9 MHz	Ferrite	Radial Vertical Cylinder	400 mA	1 mH	125 °C	-40 °C	11 mm	0.433 in	55 252 kHz	Unshielded	8.7 mm	0.343 in	Drum Core Wirewound	Through Hole	350 mA
Bourns Inc. RLB0912-331KL	1.1 Ohm	10 %	3.6 MHz	Ferrite	Radial Vertical Cylinder	700 mA	330 µH	125 °C	-40 °C	11 mm	0.433 in	25 796 kHz	Unshielded	8.7 mm	0.343 in	Drum Core Wirewound	Through Hole	620 mA
Bourns Inc. RLB0912-1R0ML	10 mOhm	20 %	88 MHz	Ferrite	Radial Vertical Cylinder	6 A	1 µH	125 °C	-40 °C	11 mm	0.433 in	7.96 MHz 30	Unshielded	8.7 mm	0.343 in	Drum Core Wirewound	Through Hole	8.1 A
Bourns Inc. RLB0912-1R5ML	8 mOhm	20 %	78 MHz	Ferrite	Radial Vertical Cylinder	6 A	1.5 µH	125 °C	-40 °C	11 mm	0.433 in	7.96 MHz 30	Unshielded	8.7 mm	0.343 in	Drum Core Wirewound	Through Hole	8 A
Bourns Inc. RLB0912-330KL		10 %	13 MHz	Ferrite	Radial Vertical Cylinder	1.7 A	33 µH	125 °C	-40 °C	11 mm	0.433 in	2.52 MHz 45	Unshielded	8.7 mm	0.343 in	Drum Core Wirewound	Through Hole	2 A	140 mOhm
Bourns Inc. RLB0912-3R3ML		20 %	50 MHz	Ferrite	Radial Vertical Cylinder	4.5 A	3.3 µH	125 °C	-40 °C	11 mm	0.433 in	7.96 MHz 30	Unshielded	8.7 mm	0.343 in	Drum Core Wirewound	Through Hole	6.5 A	18 mOhm
Bourns Inc. RLB0912-470KL	170 mOhm	10 %	11 MHz	Ferrite	Radial Vertical Cylinder	1.5 A	47 µH	125 °C	-40 °C	11 mm	0.433 in	2.52 MHz 40	Unshielded	8.7 mm	0.343 in	Drum Core Wirewound	Through Hole	1.7 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.42
		10	$ 0.36
		25	$ 0.33
		50	$ 0.30
		200	$ 0.27
		400	$ 0.25
		600	$ 0.22
		1000	$ 0.19
		2600	$ 0.19

Description

General part information

RLB0912 Series

4.7 µH Unshielded Drum Core, Wirewound Inductor 4 A 22mOhm Max Radial, Vertical Cylinder
