Q-1U00V0005003i
ActiveAmphenol Custom Cable

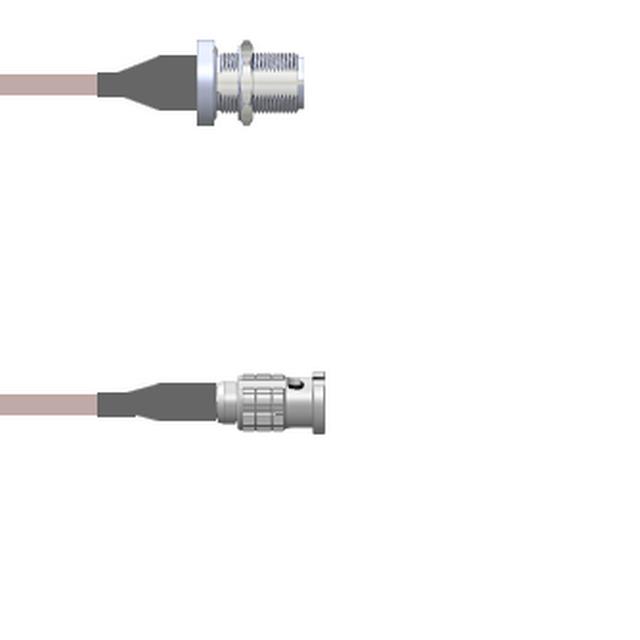

COAX CBL HD-BNC TO N-TYPE 3"
Deep-Dive with AI
Search across all available documentation for this part.
Q-1U00V0005003i
ActiveAmphenol Custom Cable
COAX CBL HD-BNC TO N-TYPE 3"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-1U00V0005003i |
|---|---|
| 1st Connector | HD-BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 3 in |
| Length | 76.2 mm |
| Overall Impedance | 50 Ohms |
| Style | HD-BNC to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 110.80 | |
| 25 | $ 108.69 | |||
| 50 | $ 106.58 | |||
| 100 | $ 104.47 | |||
| 250 | $ 102.36 | |||
Description
General part information
Q-1U00V0 Series
Cable Assembly Coaxial HD-BNC to N-Type RG-316 3.000" (76.20mm)
Documents
Technical documentation and resources
No documents available
