BAV21W

Active

MDD

DIODE GEN PURP 250V 250MA SOD123

Search across all available documentation for this part.

Active

MDD

DIODE GEN PURP 250V 250MA SOD123

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

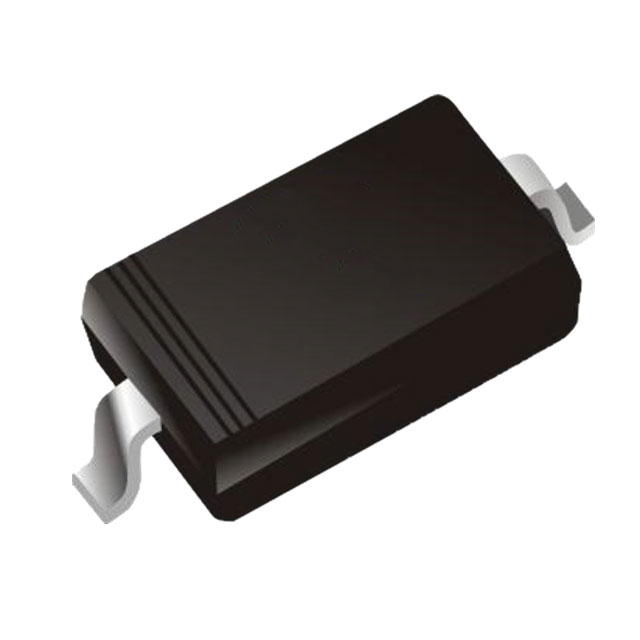

Diode 250 V 250mA Surface Mount SOD-123

Technical documentation and resources

Specification	BAV21W	BAV21 Series

Capacitance @ Vr, F	5 pF	5 pF
Current - Average Rectified (Io)	250 mA	250 mA
Current - Reverse Leakage @ Vr	-	100 nA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	SOD-123	SOD-123, SOD-323, SC-76
Reverse Recovery Time (trr)	50 ns	50 ns
Speed	-	Any Speed
Speed	-	200 mA
Supplier Device Package	SOD-123	SOD-123, SOD-323
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	250 V	250 V
Voltage - Forward (Vf) (Max) @ If	1.25 V	1.25 V

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Package / Case	Capacitance @ Vr, F	Technology	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Mounting Type	Current - Reverse Leakage @ Vr	Speed	Speed
MDD BAV21W	150 °C	-55 °C	250 mA	SOD-123	5 pF	Standard	50 ns	1.25 V	250 V	SOD-123	Surface Mount
MDD BAV21WS	150 °C	-55 °C	250 mA	SC-76, SOD-323	5 pF	Standard	50 ns	1.25 V	250 V	SOD-323	Surface Mount	100 nA	Any Speed	200 mA
