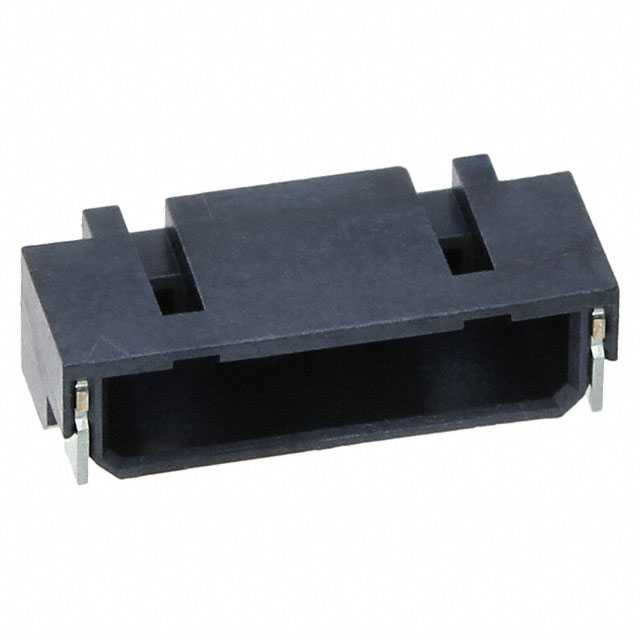

10125839-06RAEHLF
ObsoleteAmphenol ICC (FCI)
CONN HEADER SMD R/A 6POS 1.2MM
Deep-Dive with AI
Search across all available documentation for this part.
10125839-06RAEHLF
ObsoleteAmphenol ICC (FCI)
CONN HEADER SMD R/A 6POS 1.2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10125839-06RAEHLF |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.099 µm |
| Contact Finish Thickness - Mating | 3.9 µin |
| Contact Finish Thickness - Post | 2 µin |
| Contact Finish Thickness - Post | 0.051 µm |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 0.047 in |
| Pitch - Mating | 1.2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10125839 Series
Connector Header Surface Mount, Right Angle 6 position 0.047" (1.20mm)
