36M30MF006

Active

Essentra Access Solutions

HEX STANDOFF MALE FEM M3-6MM NYL

Search across all available documentation for this part.

Active

Essentra Access Solutions

HEX STANDOFF MALE FEM M3-6MM NYL

Technical Specifications

Parameters and characteristics for this part

Part	Type	Screw, Thread Size	Threaded/Unthreaded	Material	Length - Overall [x]	Length - Overall [x]	Between Board Height	Between Board Height	Color	Gender	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Length - Overall [x]	Between Board Height [z]	Between Board Height [z]	Length - Overall
Essentra Access Solutions 36M30MF011	Hex Standoff	M3x0.5	Threaded	Nylon	15.76 mm	0.62 in	0.433 in	11 mm	Natural	Female Male	0.236 in	6 mm
Essentra Access Solutions 36M30MF016	Hex Standoff	M3x0.5	Threaded	Nylon	20.76 mm				Natural	Female Male	0.236 in	6 mm	0.817 in	16 mm	0.63 in
Essentra Access Solutions 36M30MF006	Hex Standoff	M3x0.5	Threaded	Nylon	10.76 mm		0.236 in	6 mm	Natural	Female Male	0.236 in	6 mm	0.424 in
Essentra Access Solutions 36M30MF020	Hex Standoff	M3x0.5	Threaded	Nylon	24.76 mm		0.787 in	20 mm	Natural	Female Male	0.236 in	6 mm	0.975 "
Essentra Access Solutions 36M30MF010	Hex Standoff	M3x0.5	Threaded	Nylon	14.76 mm		0.394 in	10 mm	Natural	Female Male	0.236 in	6 mm	0.581 in
Essentra Access Solutions 36M30MF008	Hex Standoff	M3x0.5	Threaded	Nylon	12.76 mm				Natural	Female Male	0.236 in	6 mm	0.502 in	8 mm	0.315 in
Essentra Access Solutions 36M30MF025	Hex Standoff	M3x0.5	Threaded	Nylon	29.76 mm		0.984 in	25 mm	Natural	Female Male	0.236 in	6 mm	1.172 in
Essentra Access Solutions 36M30MF013	Hex Standoff	M3x0.5	Threaded	Nylon			0.512 in	13 mm	Natural	Female Male	0.236 in	6 mm	0.699 in			17.76 mm
Essentra Access Solutions 36M30MF019	Hex Standoff	M3x0.5	Threaded	Nylon	23.76 mm		0.748 in	19 mm	Natural	Female Male	0.236 in	6 mm	0.935 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

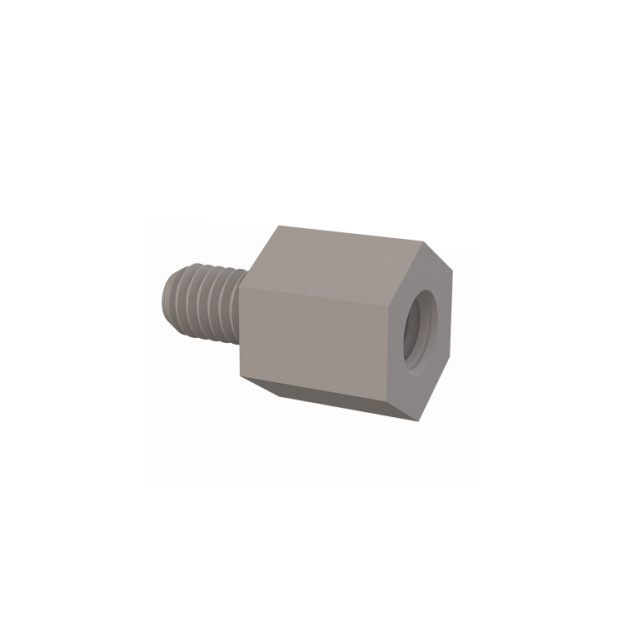

Hex Standoff Threaded M3x0.5 Nylon 0.236" (6.00mm) Natural

Technical documentation and resources

No documents available
