826-22-048-00-001000

Active

Mill-Max Manufacturing Corp.

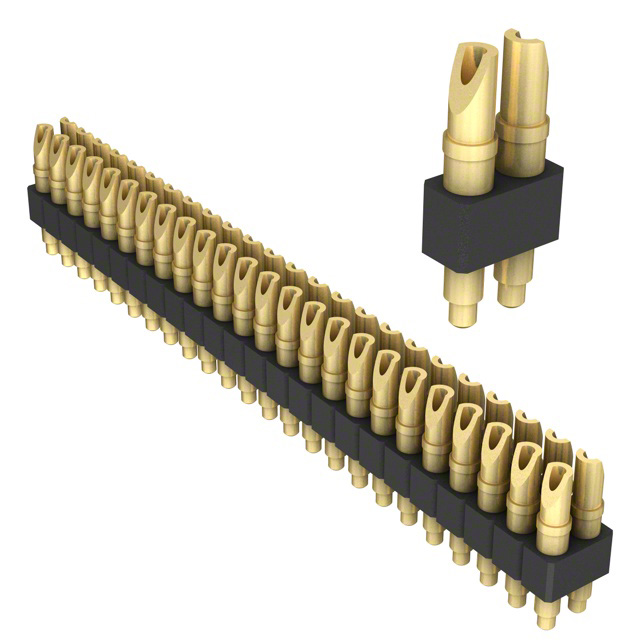

CONN SPRING PISTON 48POS SLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

826-22-048-00-001000

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 48POS SLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	826-22-048-00-001000

Connector Type	Piston
Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Material	Beryllium Copper
Mounting Type	Solder Cup, Through Hole
Number of Contacts	48
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

826-22 Series

Part	Contact Finish	Material	Connector Type	Number of Rows	Row Spacing [x]	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Number of Contacts	Mounting Type	Pitch [x]	Pitch [x]	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 826-22-024-00-001000	Gold	Beryllium Copper	Piston	2	0.1 in	2.54 mm	0.51 µm	20 µin	24	Solder Cup Through Hole	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 826-22-002-00-005000	Gold	Beryllium Copper	Piston	2	0.1 in	2.54 mm	0.51 µm	20 µin		Solder Cup Through Hole
Mill-Max Manufacturing Corp. 826-22-006-00-005000	Gold	Beryllium Copper	Piston	2	0.1 in	2.54 mm	0.51 µm	20 µin		Solder Cup Through Hole	2.54 mm	0.1 in	6
Mill-Max Manufacturing Corp. 826-22-046-00-001000	Gold	Beryllium Copper	Piston	2	0.1 in	2.54 mm	0.51 µm	20 µin	46	Solder Cup Through Hole	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 826-22-004-00-005000	Gold	Beryllium Copper	Piston	2	0.1 in	2.54 mm	0.51 µm	20 µin		Solder Cup Through Hole	2.54 mm	0.1 in	4
Mill-Max Manufacturing Corp. 826-22-044-00-001000	Gold	Beryllium Copper	Piston	2	0.1 in	2.54 mm	0.51 µm	20 µin	44	Solder Cup Through Hole	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 826-22-048-00-001000	Gold	Beryllium Copper	Piston	2	0.1 in	2.54 mm	0.51 µm	20 µin	48	Solder Cup Through Hole	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 826-22-060-00-001000	Gold	Beryllium Copper	Piston	2	0.1 in	2.54 mm	0.51 µm	20 µin	60	Solder Cup Through Hole	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 826-22-014-00-001000	Gold	Beryllium Copper	Piston	2	0.1 in	2.54 mm	0.51 µm	20 µin	14	Solder Cup Through Hole	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 826-22-018-00-005000	Gold	Beryllium Copper	Piston	2	0.1 in	2.54 mm	0.51 µm	20 µin		Solder Cup Through Hole	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.99
		10	$ 35.89
		100	$ 32.13

Description

General part information

826-22 Series

48 Position Spring Piston Connector Through Hole, Solder Cup

Documents

Technical documentation and resources

No documents available
