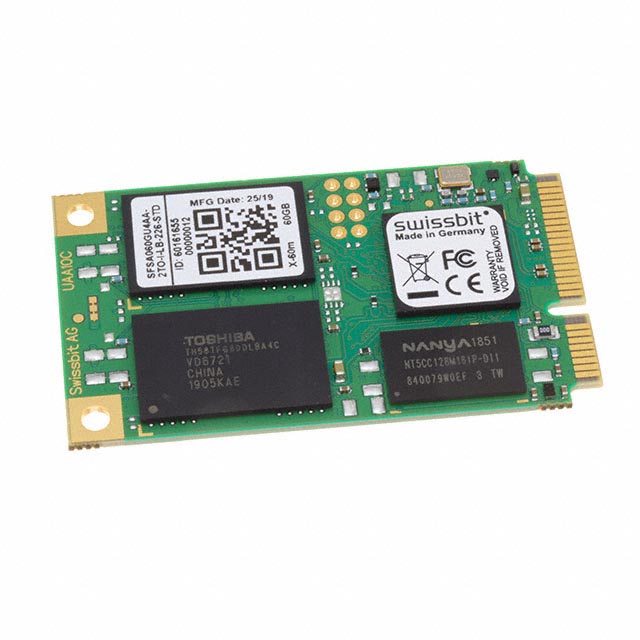

SFSA060GU4AA2TO-I-LB-226-STD

Active

SWISSBIT

SSD 60GB MSATA MLC SATA III 3.3V

Deep-Dive with AI

Search across all available documentation for this part.

SFSA060GU4AA2TO-I-LB-226-STD

Active

SWISSBIT

SSD 60GB MSATA MLC SATA III 3.3V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFSA060GU4AA2TO-I-LB-226-STD

Current - Max [Max]	960 mA
Form Factor	mSATA
Memory Size	60 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (MLC)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	2 in
Size / Dimension [y]	29.85 mm
Size / Dimension [z]	3.3 mm
Speed - Read	520 MB/s
Speed - Write	450 MB/s
Type	SATA III
Voltage - Supply	3.3 V

SFSA060 Series

Part	Voltage - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Type	Memory Size	Current - Max [Max]	Form Factor	Speed - Write	Memory Type	Speed - Read	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
SWISSBIT SFSA060GU2AA2TO-I-LB-216-STD	3.3 V	85 °C	-40 °C	SATA III	60 GB	365 mA	mSATA	90 MB/s	Solid State Drive (SSD) FLASH - NAND (MLC)	520 MB/s	29.85 mm	2 in	3.5 mm
SWISSBIT SFSA060GM3AA2TO-I-HC-22P-STD	3.3 V	85 °C	-40 °C	SATA III	60 GB	550 mA	M.2 Module	415 MB/s	Solid State Drive (SSD) FLASH - NAND (pSLC)	520 MB/s	22 mm	42 mm	3.6 mm
SWISSBIT SFSA060GV3AA4TO-I-LB-22P-STD		85 °C	-40 °C	SATA III	60 GB	630 mA	Slim-SATA	450 MB/s	Solid State Drive (SSD) FLASH - NAND (pSLC)	520 MB/s	39 mm	54 mm	4 mm
SWISSBIT SFSA060GM3AA2TO-I-LB-326-STD	3.3 V	85 °C	-40 °C	SATA III	60 GB	960 mA	M.2 Module	450 MB/s	Solid State Drive (SSD) FLASH - NAND (MLC)	520 MB/s	22 mm	80 mm	3.6 mm
SWISSBIT SFSA060GU4AA2TO-I-LB-226-STD	3.3 V	85 °C	-40 °C	SATA III	60 GB	960 mA	mSATA	450 MB/s	Solid State Drive (SSD) FLASH - NAND (MLC)	520 MB/s	29.85 mm	2 in	3.3 mm
SWISSBIT SFSA060GU4AA2TO-C-LB-226-STD	3.3 V	70 °C	0 °C	SATA III	60 GB	960 mA	mSATA	450 MB/s	Solid State Drive (SSD) FLASH - NAND (MLC)	520 MB/s	29.85 mm	2 in	3.3 mm
SWISSBIT SFSA060GV3AA4TO-C-LB-22P-STD		70 °C	0 °C	SATA III	60 GB	630 mA	Slim-SATA	450 MB/s	Solid State Drive (SSD) FLASH - NAND (pSLC)	520 MB/s	39 mm	54 mm	4 mm
SWISSBIT SFSA060GU4AA4TO-I-LB-22P-STD	3.3 V	85 °C	-40 °C	SATA III	60 GB	610 mA	mSATA	450 MB/s	Solid State Drive (SSD) FLASH - NAND (pSLC)	520 MB/s	29.85 mm	2 in	3.3 mm
SWISSBIT SFSA060GU4AA4TO-C-LB-22P-STD	3.3 V	70 °C	0 °C	SATA III	60 GB	610 mA	mSATA	450 MB/s	Solid State Drive (SSD) FLASH - NAND (pSLC)	520 MB/s	29.85 mm	2 in	3.3 mm
SWISSBIT SFSA060GV3AA2TO-I-LB-226-STD		85 °C	-40 °C	SATA III	60 GB	750 mA	Slim-SATA	450 MB/s	Solid State Drive (SSD) FLASH - NAND (MLC)	520 MB/s	39 mm	54 mm	4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 151.47
		10	$ 134.41
		25	$ 128.14
		50	$ 123.58

Description

General part information

SFSA060 Series

Solid State Drive (SSD) FLASH - NAND (MLC) 60GB SATA III mSATA 3.3V

Documents

Technical documentation and resources

No documents available
