XZYG45WTHTA

Active

SunLED

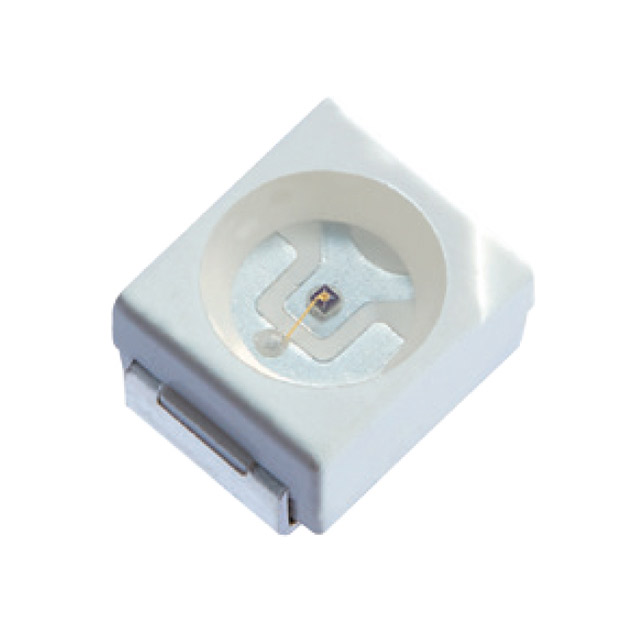

LED GREEN CLEAR 2PLCC SMD

Search across all available documentation for this part.

Active

SunLED

LED GREEN CLEAR 2PLCC SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XZYG45WTHTA	XZYG45 Series

Color	Green	Green
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	2.1 mm	2.1 - 2.15 mm
Lens Color	Colorless	Colorless
Lens Size [diameter]	2.4 mm	2.4 mm
Lens Transparency	Clear	Clear
Mounting Type	Surface Mount	Surface Mount, Bottom Entry, Surface Mount
Package / Case	2-PLCC	2-SMD, Z-Bend, 2-PLCC
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	2.8 mm	2.8 mm
Supplier Device Package	2-PLCC	2-PLCC
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	2.2 V	2.2 - 2.4 V
Wavelength - Dominant	560 nm	560 nm
Wavelength - Peak	560 nm	560 nm

LED GREEN CLR 2PLCC SMD BOT ENT

Part	Mounting Type	Current - Test	Color	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Supplier Device Package	Wavelength - Dominant	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Lens Color	Lens Size [diameter]	Height (Max) [Max] [z]	Lens Transparency	Package / Case
SunLED XZYG45WT-9HTA	Surface Mount, Bottom Entry	20 mA	Green	2.4 V	560 nm	2-PLCC	560 nm	2.8 mm	3.2 mm	120 °	Colorless	2.4 mm	2.15 mm	Clear	2-SMD, Z-Bend
SunLED XZYG45WTHTA	Surface Mount	20 mA	Green	2.2 V	560 nm	2-PLCC	560 nm	2.8 mm	3.2 mm	120 °	Colorless	2.4 mm	2.1 mm	Clear	2-PLCC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green 560nm LED Indication - Discrete 2.2V 2-PLCC
