825457-3

Active

TE Connectivity AMP Connectors

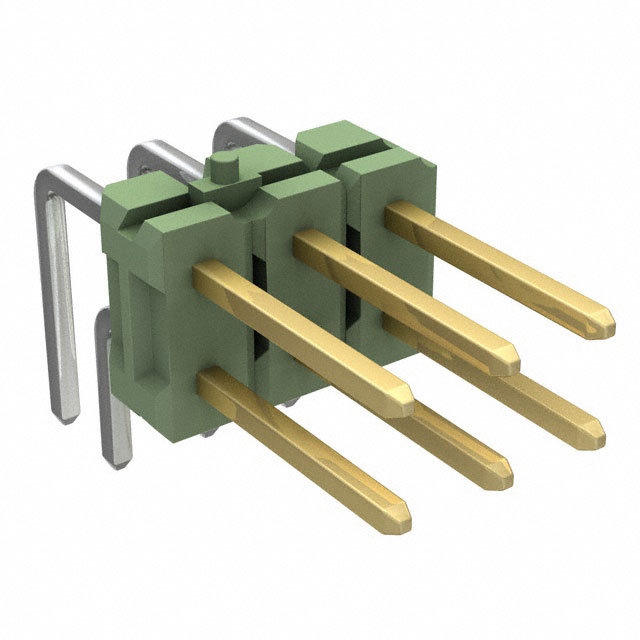

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

825457-3

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.59
		10	$ 1.45
		100	$ 1.29
		500	$ 1.16
		1000	$ 1.04
		5000	$ 0.93
		10000	$ 0.88

Description

General part information

825457 Series

Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	825457-3	825457 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Height	0.197 in	0.197 in
Insulation Height	5 mm	5 mm
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	6	6 - 100
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

825457 Series

CONN HEADER R/A 10POS 2.54MM

Part	Contact Finish - Mating	Material Flammability Rating	Contact Shape	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Insulation Material	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Type	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Fastening Type	Number of Rows	Shrouding	Termination	Number of Positions Loaded	Number of Positions
TE Connectivity AMP Connectors 825457-5	Gold	UL94 V-0	Square	Through Hole, Right Angle	6.7 mm	0.264 in	3.2 mm	0.126 in	-65 ░C	105 ░C	Green	3 µm	118.1 µin	Board to Board, Cable	Polybutylene Terephthalate (PBT)	0.197 in	5 mm	2.54 mm	0.1 in	10	Male Pin	Breakaway, Header	0.1 in	2.54 mm	Tin	0.099 µm	3.9 µin	Brass	Push-Pull	2	Unshrouded	Solder	All
TE Connectivity AMP Connectors 2-825457-0	Gold	UL94 V-0	Square	Through Hole, Right Angle	6.7 mm	0.264 in	3.2 mm	0.126 in	-65 ░C	105 ░C	Green	3 µm	118.1 µin	Board to Board, Cable	Polybutylene Terephthalate (PBT)	0.197 in	5 mm	2.54 mm	0.1 in	40	Male Pin	Breakaway, Header	0.1 in	2.54 mm	Tin	0.099 µm	3.9 µin	Brass	Push-Pull	2	Unshrouded	Solder	All
TE Connectivity AMP Connectors 1-825457-6	Gold	UL94 V-0	Square	Through Hole, Right Angle	6.7 mm	0.264 in	3.2 mm	0.126 in	-65 ░C	105 ░C	Green	3 µm	118.1 µin	Board to Board, Cable	Polybutylene Terephthalate (PBT)	0.197 in	5 mm	2.54 mm	0.1 in		Male Pin	Breakaway, Header	0.1 in	2.54 mm	Tin	0.099 µm	3.9 µin	Brass	Push-Pull	2	Unshrouded	Solder	All
TE Connectivity AMP Connectors 1-825457-2	Gold	UL94 V-0	Square	Through Hole, Right Angle	6.7 mm	0.264 in	3.2 mm	0.126 in	-65 ░C	105 ░C	Green	3 µm	118.1 µin	Board to Board, Cable	Polybutylene Terephthalate (PBT)	0.197 in	5 mm	2.54 mm	0.1 in	24	Male Pin	Breakaway, Header	0.1 in	2.54 mm	Tin	0.099 µm	3.9 µin	Brass	Push-Pull	2	Unshrouded	Solder	All
TE Connectivity AMP Connectors 1-825457-3	Gold	UL94 V-0	Square	Through Hole, Right Angle	6.7 mm	0.264 in	3.2 mm	0.126 in	-65 ░C	105 ░C	Green	3 µm	118.1 µin	Board to Board, Cable	Polybutylene Terephthalate (PBT)	0.197 in	5 mm	2.54 mm	0.1 in	26	Male Pin	Breakaway, Header	0.1 in	2.54 mm	Tin	0.099 µm	3.9 µin	Brass	Push-Pull	2	Unshrouded	Solder	All
TE Connectivity AMP Connectors 825457-3	Gold	UL94 V-0	Square	Through Hole, Right Angle	6.7 mm	0.264 in	3.2 mm	0.126 in	-65 ░C	105 ░C	Green	3 µm	118.1 µin	Board to Board, Cable	Polybutylene Terephthalate (PBT)	0.197 in	5 mm	2.54 mm	0.1 in	6	Male Pin	Breakaway, Header	0.1 in	2.54 mm	Tin	0.099 µm	3.9 µin	Brass	Push-Pull	2	Unshrouded	Solder	All
TE Connectivity AMP Connectors 5-825457-0	Gold	UL94 V-0	Square	Through Hole, Right Angle	6.7 mm	0.264 in	3.2 mm	0.126 in	-65 ░C	105 ░C	Green	3 µm	118.1 µin	Board to Board, Cable	Polybutylene Terephthalate (PBT)	0.197 in	5 mm	2.54 mm	0.1 in	100	Male Pin	Breakaway, Header	0.1 in	2.54 mm	Tin	0.099 µm	3.9 µin	Brass	Push-Pull	2	Unshrouded	Solder	All
TE Connectivity AMP Connectors 825457-8	Gold	UL94 V-0	Square	Through Hole, Right Angle	6.7 mm	0.264 in	3.2 mm	0.126 in	-65 ░C	105 ░C	Green	3 µm	118.1 µin	Board to Board, Cable	Polybutylene Terephthalate (PBT)	0.197 in	5 mm	2.54 mm	0.1 in		Male Pin	Breakaway, Header	0.1 in	2.54 mm	Tin	0.099 µm	3.9 µin	Brass	Push-Pull	2	Unshrouded	Solder	All	16
TE Connectivity AMP Connectors 1-825457-7	Gold	UL94 V-0	Square	Through Hole, Right Angle	6.7 mm	0.264 in	3.2 mm	0.126 in	-65 ░C	105 ░C	Green	3 µm	118.1 µin	Board to Board, Cable	Polybutylene Terephthalate (PBT)	0.197 in	5 mm	2.54 mm	0.1 in	34	Male Pin	Breakaway, Header	0.1 in	2.54 mm	Tin	0.099 µm	3.9 µin	Brass	Push-Pull	2	Unshrouded	Solder	All
TE Connectivity AMP Connectors 825457-7	Gold	UL94 V-0	Square	Through Hole, Right Angle	6.7 mm	0.264 in	3.2 mm	0.126 in	-65 ░C	105 ░C	Green	3 µm	118.1 µin	Board to Board, Cable	Polybutylene Terephthalate (PBT)	0.197 in	5 mm	2.54 mm	0.1 in	14	Male Pin	Breakaway, Header	0.1 in	2.54 mm	Tin	0.099 µm	3.9 µin	Brass	Push-Pull	2	Unshrouded	Solder	All
