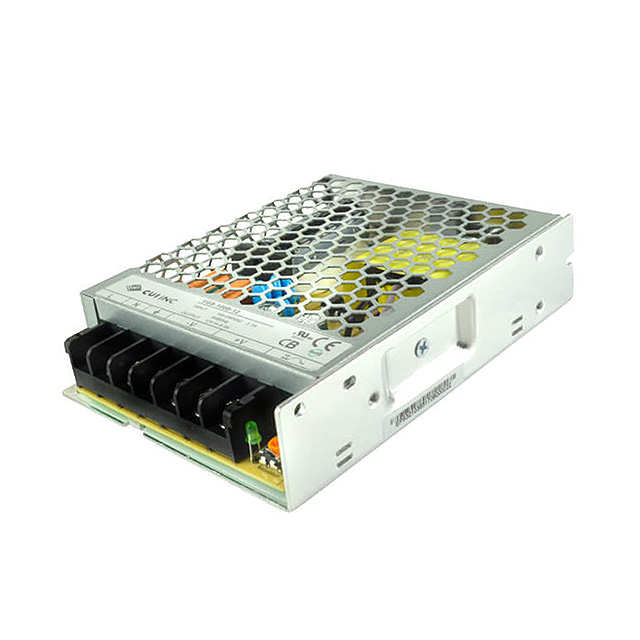

VGS-100B-12

Obsolete

CUI Inc.

AC/DC CONVERTER 12V 100W

Deep-Dive with AI

Search across all available documentation for this part.

VGS-100B-12

Obsolete

CUI Inc.

AC/DC CONVERTER 12V 100W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VGS-100B-12

Applications	ITE (Commercial)
Approval Agency	SIQ, CB Scheme, EN, UL, TUV, IEC, FCC
Current - Output 1	8.3 A
Efficiency	85 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	100 W
Size / Dimension [x]	5.08 in
Size / Dimension [x]	129 mm
Size / Dimension [y]	97.5 mm
Size / Dimension [y]	3.84 in
Size / Dimension [z]	30 mm
Size / Dimension [z]	1.18 in
Standard Number	55024, 55032 Class B, 61000-3-3, 61000-3-2, 60950-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

VGS-100 Series

Part	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Number of Outputs	Power (Watts)	Type	Voltage - Output 1	Standard Number	Approval Agency	Applications	Current - Output 1	Features	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency
CUI Inc. VGS-100W-24-A	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	108 W	Enclosed	24 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	4.5 A
CUI Inc. VGS-100B-12	Chassis Mount	30 mm	129 mm	5.08 in	3.84 in	1.18 in	97.5 mm	70 °C	-20 °C	1.5 kV	1	100 W	Enclosed	12 V	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	ITE (Commercial)	8.3 A	Adjustable Output Universal Input	90 VAC	264 VAC	85 %
CUI Inc. VGS-100C-24-B	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	108 W	Conformal Coated Enclosed	24 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	4.5 A	Adjustable Output Universal Input	85 VAC 120 VDC	264 VAC 373 VDC	90 %
CUI Inc. VGS-100W-36-B	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	101 W	Conformal Coated Enclosed	36 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	2.8 A
CUI Inc. VGS-100W-24-B	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	108 W	Conformal Coated Enclosed	24 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	4.5 A
CUI Inc. VGS-100C-48-B	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	110 W	Conformal Coated Enclosed	48 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	2.3 A	Adjustable Output Universal Input	85 VAC 120 VDC	264 VAC 373 VDC	91 %
CUI Inc. VGS-100C-24	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	108 W	Enclosed	24 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	4.5 A	Adjustable Output Universal Input	85 VAC 120 VDC	264 VAC 373 VDC	90 %
CUI Inc. VGS-100C-24-A	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	108 W	Enclosed	24 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	4.5 A	Adjustable Output Universal Input	85 VAC 120 VDC	264 VAC 373 VDC	90 %
CUI Inc. VGS-100W-48	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	110 W	Enclosed	48 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	2.3 A				90.5 %
CUI Inc. VGS-100W-5-B	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	90 W	Conformal Coated Enclosed	5 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	18 A				85.5 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 37.12
		5	$ 34.97
		10	$ 34.09
		25	$ 32.95
		50	$ 32.11
		100	$ 31.30

Description

General part information

VGS-100 Series

Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
