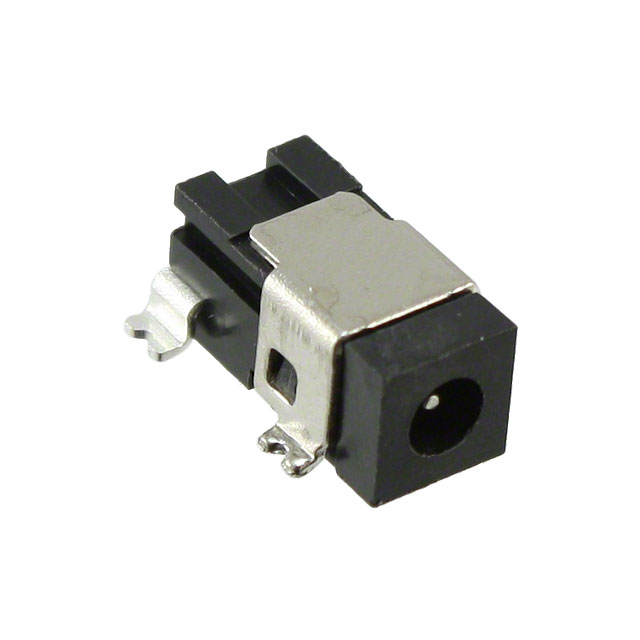

PJ-032H-SMT-TR

Obsolete

CUI Devices

CONN PWR JACK 0.7X2.35MM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

PJ-032H-SMT-TR

Obsolete

CUI Devices

CONN PWR JACK 0.7X2.35MM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-032H-SMT-TR

Actual Diameter [diameter]	0.65 mm, 0.11 in, 2.8 mm, 0.026 in
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	2.5 A
Features	Board Guide
Gender	Male
Housing Material	Polyamide (PA6T), Nylon 6T
Industry Recognized Mating Diameter [custom]	0.028 "
Industry Recognized Mating Diameter [custom]	0.7 mm
Industry Recognized Mating Diameter [custom]	2.35 mm
Industry Recognized Mating Diameter [custom]	0.093 "
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth [custom]	8 mm
Mating Length/Depth [custom]	0.315 in
Mounting Type	Surface Mount, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Shielded
Termination	Solder
Voltage - Rated	24 VDC

PJ-032 Series

Part	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Mounting Type	Internal Switch(s)	Termination	Actual Diameter [diameter]	Voltage - Rated	Current Rating (Amps)	Housing Material	Connector Type	Features	Shielding	Body Color	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Number of Positions/Contacts	Material Flammability Rating	Contact Material	Mating Length/Depth [custom]	Mating Length/Depth [custom]	Contact Material - Plating [custom]	Actual Diameter [diameter]	Actual Diameter	Mating Length/Depth [custom]	Mating Length/Depth [custom]	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Contact Material - Plating
CUI Devices PJ-032H-SMT-TR	0.028 "	0.7 mm	2.35 mm	0.093 "	Surface Mount Right Angle	Normally Closed Single Switch	Solder	0.026 in 0.11 in 0.65 mm 2.8 mm	24 VDC	2.5 A	Polyamide (PA6T) Nylon 6T	Jack	Board Guide	Shielded	Black	-25 °C	85 °C	Male	2 Conductors 3 Conductors	UL94 V-0	Brass Copper Alloy	8 mm	0.315 in	Silver
CUI Devices PJ-032AH					Through Hole	Normally Closed Single Switch	Solder Eyelet(s)		24 VDC	5 A	Polybutylene Terephthalate (PBT)	Jack		Unshielded	Black	-25 °C	85 °C	Male	2 Conductors 3 Conductors	UL94 V-0	Brass Copper Alloy			Silver	0.079 in 0.256 in	2 mm 6.5 mm	9 mm	0.354 in	0.083 in 0.217 "	2.1 mm 5.5 mm
CUI Devices PJ-032A					Through Hole	Normally Closed Single Switch	Solder Eyelet(s)		24 VDC	2.5 A	Polybutylene Terephthalate (PBT)	Jack		Unshielded	Black	-25 °C	85 °C	Male	2 Conductors 3 Conductors	UL94 V-0	Brass Copper Alloy				0.079 in 0.256 in	2 mm 6.5 mm	9 mm	0.354 in	0.083 in 0.217 "	2.1 mm 5.5 mm	Tin
CUI Devices PJ-032BH					Through Hole	Normally Closed Single Switch	Solder Eyelet(s)		24 VDC	5 A	Polybutylene Terephthalate (PBT)	Jack		Unshielded	Black	-25 °C	85 °C	Male	2 Conductors 3 Conductors	UL94 V-0	Brass Copper Alloy			Silver			9 mm	0.354 in	0.098 " 0.217 "	2.5 mm 5.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PJ-032 Series

Power Barrel Connector Jack 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 Surface Mount, Right Angle

Documents

Technical documentation and resources

No documents available
