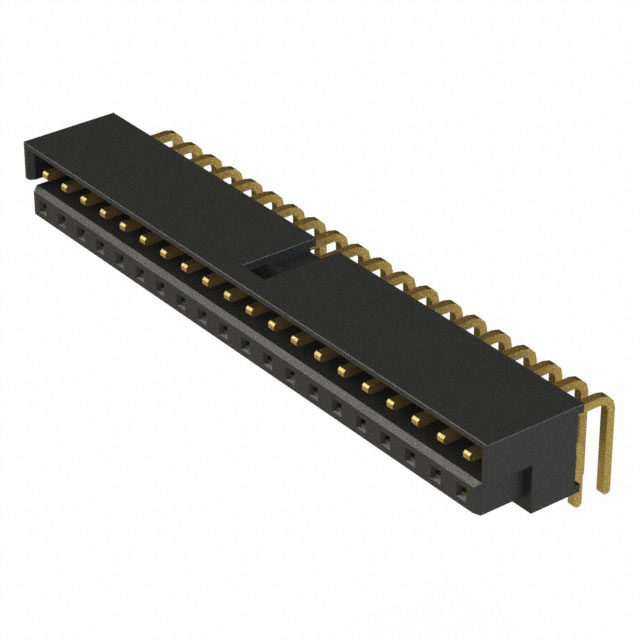

LS2-120-01-F-D-RA2-TR

Active

Samtec Inc.

CONN SELF-MATE 40POS R/A GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LS2-120-01-F-D-RA2-TR

Active

Samtec Inc.

CONN SELF-MATE 40POS R/A GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LS2-120-01-F-D-RA2-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Latch Holder
Height Above Board	0.208 in
Height Above Board	5.28 mm
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm

LS2-120 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Features	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish	Height Above Board	Height Above Board	Connector Type	Number of Rows	Contact Finish Thickness
Samtec Inc. LS2-120-02-G-D	10 Áin	0.25 Ám	Surface Mount	Latch Holder	40	0.079 in	2 mm	Gold	8.38 mm	0.33 in	Self Mating Non-Gendered Hermaphroditic	2
Samtec Inc. LS2-120-01-F-D			Through Hole	Latch Holder	40	0.079 in	2 mm	Gold	6.35 mm	0.25 in	Self Mating Non-Gendered Hermaphroditic	2	Flash
Samtec Inc. LS2-120-02-L-D	10 Áin	0.25 Ám	Surface Mount	Latch Holder	40	0.079 in	2 mm	Gold	8.38 mm	0.33 in	Self Mating Non-Gendered Hermaphroditic	2
Samtec Inc. LS2-120-01-F-D-RA2-TR			Through Hole Right Angle	Latch Holder	40	0.079 in	2 mm	Gold	5.28 mm	0.208 in	Self Mating Non-Gendered Hermaphroditic	2	Flash
Samtec Inc. LS2-120-01-SM-D	30 Áin	0.76 Ám	Through Hole	Latch Holder	40	0.079 in	2 mm	Gold	6.35 mm	0.25 in	Self Mating Non-Gendered Hermaphroditic	2
Samtec Inc. LS2-120-01-F-D-RA1			Through Hole Right Angle	Latch Holder	40	0.079 in	2 mm	Gold	5.28 mm	0.208 in	Self Mating Non-Gendered Hermaphroditic	2	Flash
Samtec Inc. LS2-120-02-S-D-K-TR	30 Áin	0.76 Ám	Surface Mount		40	0.079 in	2 mm	Gold	8.38 mm	0.33 in	Self Mating Non-Gendered Hermaphroditic	2
Samtec Inc. LS2-120-01-L-D-RA1-TR	10 Áin	0.25 Ám	Through Hole Right Angle	Latch Holder	40	0.079 in	2 mm	Gold	5.28 mm	0.208 in	Self Mating Non-Gendered Hermaphroditic	2
Samtec Inc. LS2-120-01-S-D	30 Áin	0.76 Ám	Through Hole	Latch Holder	40	0.079 in	2 mm	Gold	6.35 mm	0.25 in	Self Mating Non-Gendered Hermaphroditic	2
Samtec Inc. LS2-120-02-L-D-K-TR	10 Áin	0.25 Ám	Surface Mount		40	0.079 in	2 mm	Gold	8.38 mm	0.33 in	Self Mating Non-Gendered Hermaphroditic	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 9.24
		10	$ 8.54
		25	$ 8.07
		50	$ 7.78
		100	$ 5.88
	Tape & Reel (TR)	225	$ 5.88
		675	$ 5.44

Description

General part information

LS2-120 Series

40 Position Connector Self Mating, Non-Gendered, Hermaphroditic Through Hole, Right Angle Gold
