BXRC-56G10K0-D-74

Active

BRIDGELUX

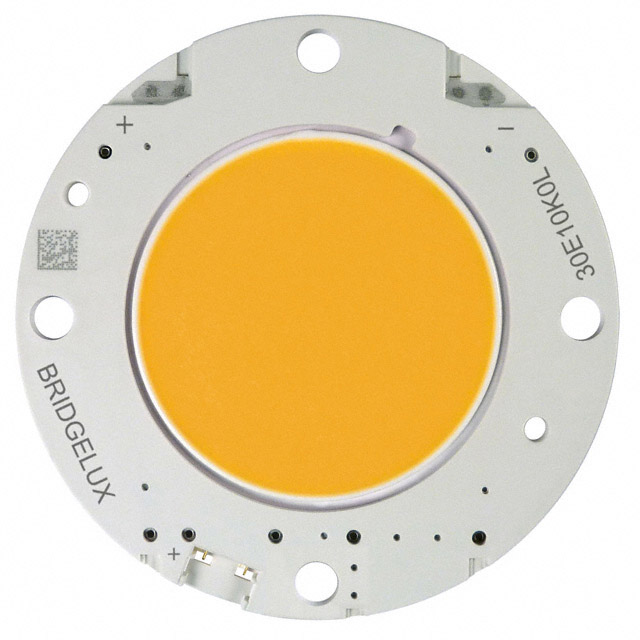

LED COB VERO 29 WHT RND 5600K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-56G10K0-D-74

Active

BRIDGELUX

LED COB VERO 29 WHT RND 5600K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRC-56G10K0-D-74	BXRC-56 Series

CCT (K)	5600 K	5600 K
Color	Cool, White	Cool, White
Configuration	Round	Round
CRI (Color Rendering Index)	90	90 - 97
Current - Max [Max]	4.2 A	1.8 - 4.2 A
Current - Test	2.1 A	1.05 - 900 A
Features	-	With Connector
Height [z]	1.9 mm	1.9 - 3.6 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	29.2 mm	18.4 - 29.2 mm
Lumens/Watt @ Current - Test	152 lm/W	112 - 152 lm/W
Luminous Flux @ Current/Temperature	12037 lm	3407 - 18038 lm
Size / Dimension [diameter]	49.2 mm	36.2 - 49.2 mm
Temperature - Test	-	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	37.6 V	28.1 - 69.4 V

BXRC-56 Series

VERO SE 18D COOL WHITE LED ARRAY

Part	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Temperature - Test	Lens Type	Configuration	Height [z]	Lumens/Watt @ Current - Test	CCT (K)	Current - Max [Max]	Viewing Angle	Type	Current - Test	Size / Dimension [diameter]	Color	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Features
BRIDGELUX BXRC-56H4000-D-74-SE	18.4 mm	97	85 °C	Flat	Round	3.6 mm	120 lm/W	5600 K	2.1 A	120 °	Chip On Board (COB)	1.05 A	36.2 mm	Cool, White	28.3 V	3563 lm
BRIDGELUX BXRC-56G10K1-C-74-SE	29.2 mm	90		Flat	Round	3.6 mm	152 lm/W	5600 K	3.42 A	120 °	Chip On Board (COB)	1.71 A	49.2 mm	Cool, White	69.4 V	18038 lm
BRIDGELUX BXRC-56G10K1-D-74	29.2 mm	90		Flat	Round	1.9 mm	148 lm/W	5600 K	4.2 A	120 °	Chip On Board (COB)	2.1 A	49.2 mm	Cool, White	37.6 V	11677 lm	With Connector
BRIDGELUX BXRC-56G4001-C-74-SE	18.4 mm	90	85 °C	Flat	Round	3.6 mm		5600 K	2.34 A	120 °	Chip On Board (COB)		36.2 mm	Cool, White
BRIDGELUX BXRC-56G10K1-D-74-SE	29.2 mm	90		Flat	Round	3.6 mm	152 lm/W	5600 K	4.2 A	120 °	Chip On Board (COB)	2.1 A	49.2 mm	Cool, White	37.6 V	12002 lm
BRIDGELUX BXRC-56G10K0-L-24	29.2 mm	90	85 °C	Flat	Round	1.9 mm	114 lm/W	5600 K	4.2 A	120 °	Chip On Board (COB)	2.1 A	49.2 mm	Cool, White	36.8 V		With Connector
BRIDGELUX BXRC-56G10K1-C-74	29.2 mm	90		Flat	Round	1.9 mm	148 lm/W	5600 K	3.42 A	120 °	Chip On Board (COB)	1.71 A	49.2 mm	Cool, White	69.4 V	17554 lm	With Connector
BRIDGELUX BXRC-56H10K0-D-74-SE	29.2 mm	97		Flat	Round	3.6 mm	122 lm/W	5600 K	4.2 A	120 °	Chip On Board (COB)	2.1 A	49.2 mm	Cool, White	37.6 V	10423 lm
BRIDGELUX BXRC-56G4001-D-74	18.4 mm	90		Flat	Round	1.9 mm	137 lm/W	5600 K	2.1 A	120 °	Chip On Board (COB)	1.05 A	36.2 mm	Cool, White	28.1 V	4042 lm	With Connector
BRIDGELUX BXRC-56G10K0-L-04	29.2 mm	90		Flat	Round	1.9 mm	112 lm/W	5600 K	4.2 A	120 °	Chip On Board (COB)	2.1 A	49.2 mm	Cool, White	38.6 V	9060 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 22.09

Description

General part information

BXRC-56 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 Vero® 29 Array White, Cool Round
