833-008-542-604
ActiveEDAC Inc.
CONN EDGE SGL FMALE 8POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
833-008-542-604
ActiveEDAC Inc.
CONN EDGE SGL FMALE 8POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-008-542-604 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
833-008 Series
...
| Part | Color | Contact Finish | Card Type | Contact Type | Flange Feature | Pitch [x] | Pitch [x] | Number of Positions | Termination Rows | Number of Rows | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Material - Insulation | Read Out | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Green | Gold | Non Specified - Single Edge | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 0.156 in | 3.96 mm | 8 | 1 | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 125 °C | -40 °C | Solder Eyelet(s) | Diallyl Phthalate (DAP) | Single | 8 | 8 | 8 | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Green | Gold | Non Specified - Single Edge | Cantilever | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | 8 | 1 | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 125 °C | -40 °C | Wire Wrap | Diallyl Phthalate (DAP) | Single | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | ||
EDAC Inc. | Green | Gold | Non Specified - Single Edge | Cantilever | M3 Threaded Insert Top Mount Opening | 0.156 in | 3.96 mm | 8 | 1 | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 125 °C | -40 °C | Solder | Diallyl Phthalate (DAP) | Single | 8 | 8 | 8 | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Green | Gold | Non Specified - Single Edge | Cantilever | 0.156 in | 3.96 mm | 8 | 1 | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 125 °C | -40 °C | Solder | Diallyl Phthalate (DAP) | Single | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | |||
EDAC Inc. | Green | Gold | Non Specified - Single Edge | Cantilever | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | 8 | 1 | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 125 °C | -40 °C | Wire Wrap | Diallyl Phthalate (DAP) | Single | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | ||
EDAC Inc. | Green | Gold | Non Specified - Single Edge | Cantilever | Floating Bobbin Top Mount Opening | 0.156 in | 3.96 mm | 8 | 1 | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 125 °C | -40 °C | Solder Eyelet(s) | Diallyl Phthalate (DAP) | Single | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 0.116 in | 2.95 mm | ||
EDAC Inc. | Green | Gold | Non Specified - Single Edge | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | 8 | 1 | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 125 °C | -40 °C | Solder | Diallyl Phthalate (DAP) | Single | 8 | 8 | 8 | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Green | Gold | Non Specified - Single Edge | Cantilever | 0.156 in | 3.96 mm | 8 | 1 | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 125 °C | -40 °C | Wire Wrap | Diallyl Phthalate (DAP) | Single | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | |||
EDAC Inc. | Green | Gold | Non Specified - Single Edge | Cantilever | 0.156 in | 3.96 mm | 8 | 1 | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 125 °C | -40 °C | Wire Wrap | Diallyl Phthalate (DAP) | Single | 8 | 8 | 8 | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Green | Gold | Non Specified - Single Edge | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 0.156 in | 3.96 mm | 8 | 1 | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 125 °C | -40 °C | Solder | Diallyl Phthalate (DAP) | Single | 8 | 8 | 8 | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
833-008 Series

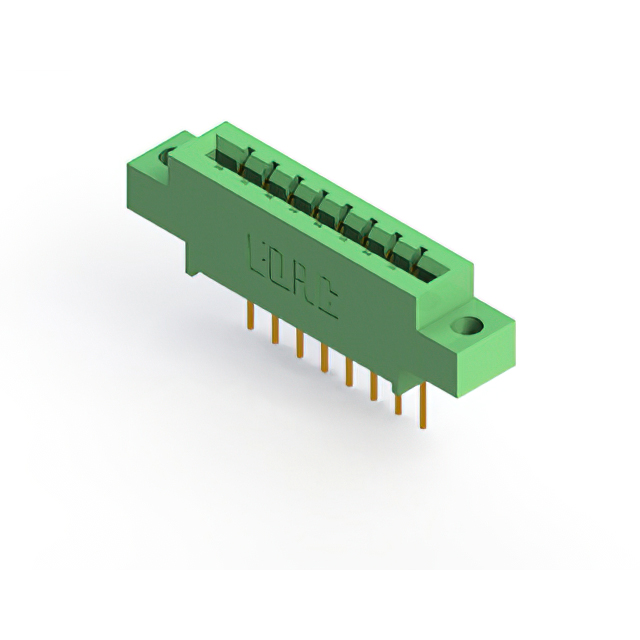

8 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
