1452324-3
ActiveTE Connectivity Raychem Cable Protection
TAB HOUSING 2.8MM, 4+6POS SEALED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1452324-3
ActiveTE Connectivity Raychem Cable Protection
TAB HOUSING 2.8MM, 4+6POS SEALED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1452324-3 |
|---|---|
| Color | Black |
| Gender | Tab, Male |
| Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Stacking Direction | Top to Bottom and Side to Side |
| Style | Housing |
| Terminal Type | Disconnect, Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.34 | |
| 10 | $ 1.26 | |||
| 25 | $ 1.21 | |||
| 50 | $ 1.20 | |||
| 100 | $ 1.08 | |||
| 250 | $ 1.05 | |||
| 500 | $ 0.95 | |||
| 1000 | $ 0.85 | |||
| 3000 | $ 0.79 | |||
Description
General part information
1452324 Series

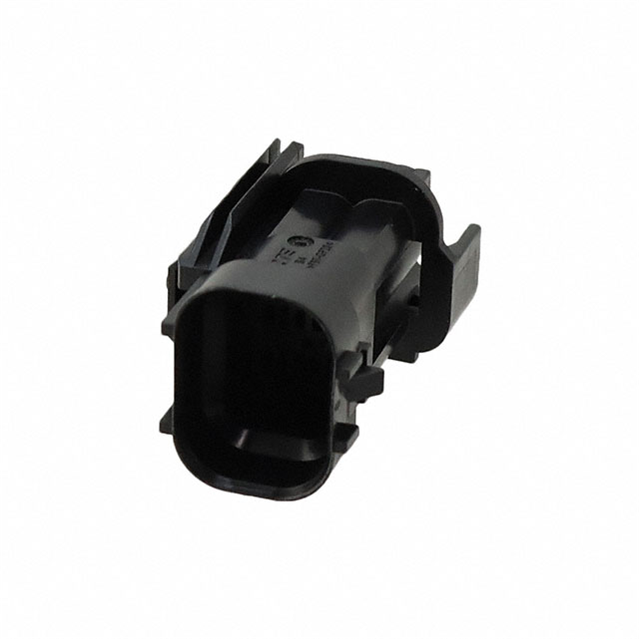

10 Position Housing Connector Male, Tab Black
