CB-05BFFA-LL7001

Active

Amphenol LTW

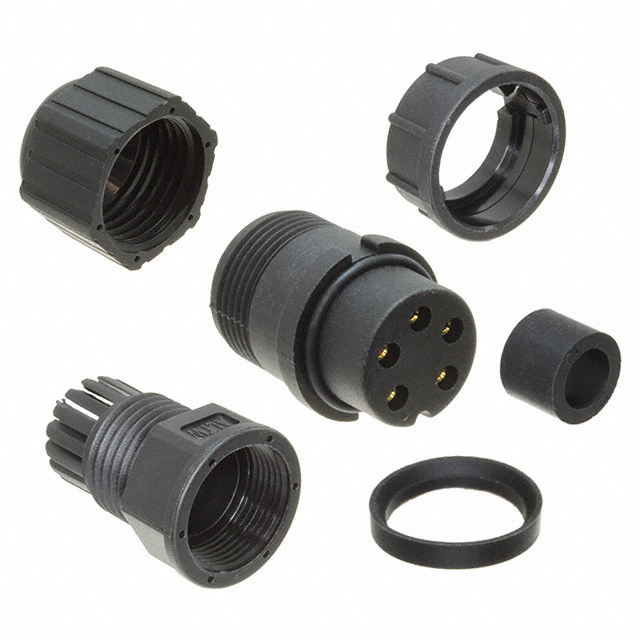

CERES, MIDDLE SIZE, PLASTIC, 10A, 05 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, 2 POINTS LOCK, SOLDER, FIELD INSTALLABLE,

Deep-Dive with AI

Search across all available documentation for this part.

CB-05BFFA-LL7001

Active

Amphenol LTW

CERES, MIDDLE SIZE, PLASTIC, 10A, 05 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, 2 POINTS LOCK, SOLDER, FIELD INSTALLABLE,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CB-05BFFA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded

CB-05BFFA Series

Part	Primary Material	Contact Finish - Mating	Material Flammability Rating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Shell Material	Color	Features	Termination	Shielding	Orientation	Mounting Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Connector Type	Current Rating (Amps)	Contact Material	Insert Material	Fastening Type	Ingress Protection	Shell Size - Insert	Shell Size, MIL	Contact Type	Contact Shape	Note	Type	Housing Color	Backshell Material, Plating
Amphenol LTW CB-05BFFA-QL8MP0	Plastic	Gold	UL94 V-0	0.394 in	8 mm	10 mm	0.315 in	Glass Filled Nylon Polyamide (PA)	Black	Backshell	Crimp	Unshielded	Keyed	Free Hanging (In-Line)	5	-40 °C	105 ░C	300 VAC	Female Sockets Plug	10 A	Copper Alloy	Polyamide (PA) Nylon Glass Filled	Push-Pull	IP68 - Dust Tight Waterproof	C
Amphenol LTW CB-05BFFA-QL8SP0	Plastic	Gold	UL94 V-0	0.315 in	6 mm	8 mm	0.236 in	Glass Filled Nylon Polyamide (PA)	Black	Backshell	Crimp	Unshielded	Keyed	Free Hanging (In-Line)	5	-40 °C	105 ░C	300 VAC	Female Sockets Plug	10 A	Copper Alloy	Polyamide (PA) Nylon Glass Filled	Push-Pull	IP68 - Dust Tight Waterproof	C
Amphenol LTW CB-05BFFA-QL8LN0	Plastic									Backshell		Unshielded	Keyed	Free Hanging (In-Line)		-40 °C	105 ░C		Plug Housing			Thermoplastic	Push-Pull	IP68 - Dust Tight Waterproof		C	Crimp	Circular	Contacts Not Included	For Female Sockets	Black
Amphenol LTW CB-05BFFA-LL7001	Plastic	Gold						Glass Filled Nylon Polyamide (PA)	Black	Backshell Coupling Nut		Unshielded	Keyed	Free Hanging (In-Line)		-40 °C	105 ░C		Female Sockets Plug	10 A	Copper Alloy	Polyamide (PA) Nylon Glass Filled	Bayonet Lock	IP67 - Dust Tight Waterproof	C							Nylon Polyamide (PA)
Amphenol LTW CB-05BFFA-QL8SN0	Plastic									Backshell		Unshielded	Keyed	Free Hanging (In-Line)		-40 °C	105 ░C		Plug Housing			Thermoplastic		IP68 - Dust Tight Waterproof	C		Crimp	Circular	Contacts Not Included	For Female Sockets	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.53
		10	$ 12.88
		30	$ 12.38
		50	$ 11.89
		100	$ 11.23
		250	$ 10.24
		500	$ 9.58
		1000	$ 8.79
Newark	Each	10	$ 11.40
		25	$ 10.47
		50	$ 9.35
		100	$ 8.60
		250	$ 8.35

Description

General part information

CB-05BFFA Series

5 Position Circular Connector Plug, Female Sockets Solder Cup
