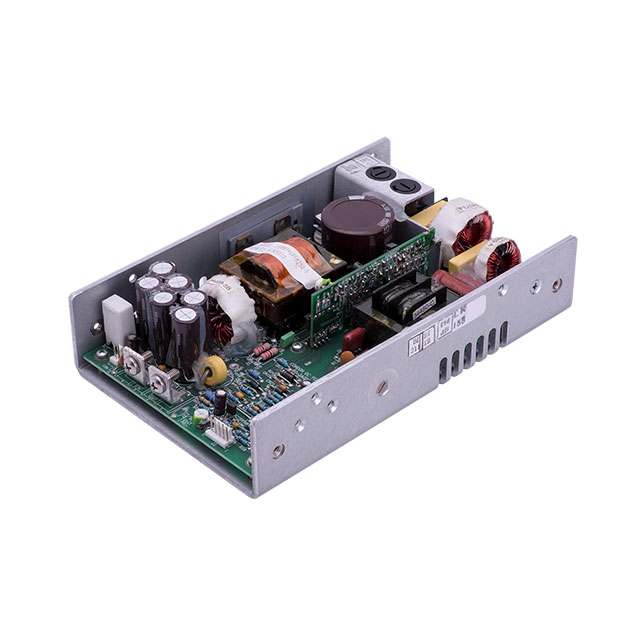

GPFM250-24G

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 180W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 180W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	GPFM250-24G	GPFM250 Series

Applications	Medical	Medical
Approval Agency	cURus, CE, TUV	cURus, CE, TUV
Current - Output 1	-	3.8 - 12 A
Efficiency	75 %	75 %
Features	PFC, Standby Output, Universal Input, Remote Sense, Adjustable Output	PFC, Standby Output, Universal Input, Remote Sense, Adjustable Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	250 W	250 W
Power (Watts)	180 W	180 W
Size / Dimension [x]	8 "	8 "
Size / Dimension [x]	203.2 mm	203.2 mm
Size / Dimension [y]	127 mm	127 mm
Size / Dimension [y]	5 "	5 "
Size / Dimension [z]	44.5 mm	44.5 mm
Size / Dimension [z]	1.75 "	1.75 "
Type	Open Frame	Open Frame
Voltage - Output 1	24 V	15 - 48 V

AC/DC CONVERTER 48V 180W

Part	Approval Agency	Voltage - Output 1	Efficiency	Power (Watts)	Power (Watts)	Current - Output 1	Applications	Number of Outputs	Features	Mounting Type	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
SL POWER / Advanced Energy GPFM250-48G	CE, cURus, TUV	48 V	75 %	250 W	180 W	3.8 A	Medical	1	Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input	Chassis Mount	Open Frame	8 "	44.5 mm	127 mm	203.2 mm	1.75 "	5 "
SL POWER / Advanced Energy GPFM250-24G	CE, cURus, TUV	24 V	75 %	250 W	180 W		Medical	1	Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input	Chassis Mount	Open Frame	8 "	44.5 mm	127 mm	203.2 mm	1.75 "	5 "
SL POWER / Advanced Energy GPFM250-15G	CE, cURus, TUV	15 V	75 %	250 W	180 W	12 A	Medical	1	Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input	Chassis Mount	Open Frame	8 "	44.5 mm	127 mm	203.2 mm	1.75 "	5 "
SL POWER / Advanced Energy GPFM250-28G	CE, cURus, TUV	28 V	75 %	250 W	180 W		Medical	1	Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input	Chassis Mount	Open Frame	8 "	44.5 mm	127 mm	203.2 mm	1.75 "	5 "
