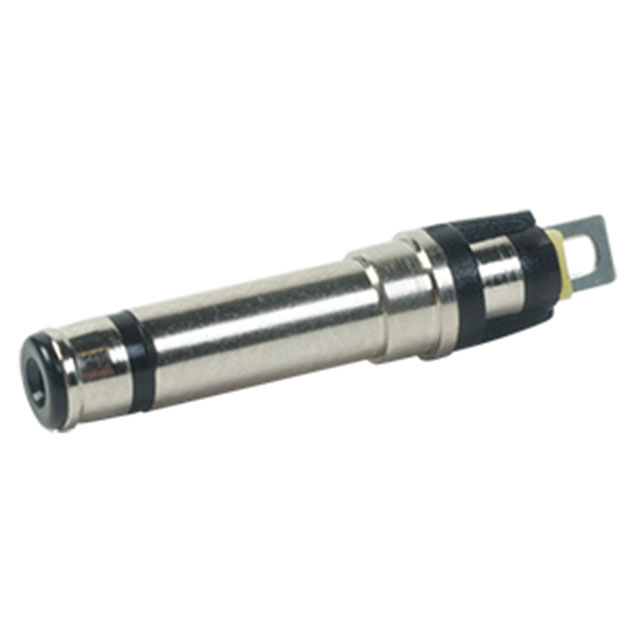

PPM-3-3511-SG
ActiveCUI Devices
CONN PWR PLUG 1.1X3.5MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PPM-3-3511-SG |
|---|---|
| Actual Diameter [diameter] | 0.043 ", 0.138 " |
| Actual Diameter [diameter] | 3.5 mm, 1.1 mm |
| Body Color | Silver |
| Body Material | Brass |
| Connector Type | Plug |
| Contact Material | Phosphor Bronze |
| Contact Material - Plating [custom] | Nickel |
| Gender | Female |
| Industry Recognized Mating Diameter [diameter] | 3.5 mm, 1.1 mm |
| Industry Recognized Mating Diameter [diameter] | 0.043 ", 0.138 in |
| Insulation Color | Black |
| Internal Switch(s) | False |
| Mating Length/Depth | 6.6 mm |
| Mating Length/Depth | 0.26 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1000 | $ 0.61 | |
Description
General part information
PPM-3 Series
Power Barrel Connector Plug 1.10mm ID (0.043"), 3.50mm OD (0.138") Free Hanging (In-Line)
