Q-2B0740013024i

Active

Amphenol Custom Cable

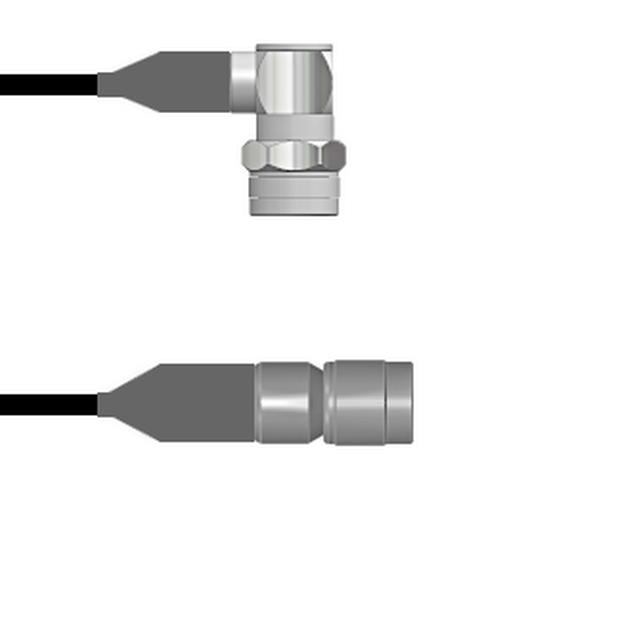

CBL ASSY NTYPE-TNC PLUG-PLUG 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2B0740013024i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLUG-PLUG 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2B0740013024i

1st Connector	N-Type Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms

Q-2B0740 Series

Part	1st Connector	2nd Connector	Color	1st Contact Gender	Overall Impedance	Frequency - Max [Max]	2nd Contact Gender	Features	Length	Length	1st Connector Mounting Type	Cable Type	2nd Connector Mounting Type	Length
Amphenol Custom Cable Q-2B0740013006i	N-Type Plug Right Angle	TNC Plug	Black	Male	50 Ohms	6000 MHz	Male	Shielded	152.4 mm	6 in	Free Hanging (In-Line)	LMR 400	Free Hanging (In-Line)
Amphenol Custom Cable Q-2B0740013003M	N-Type Plug Right Angle	TNC Plug	Black	Male	50 Ohms	6000 MHz	Male	Shielded	3 m	118.1 in	Free Hanging (In-Line)	LMR 400	Free Hanging (In-Line)	9.8 '
Amphenol Custom Cable Q-2B0740013024i	N-Type Plug Right Angle	TNC Plug	Black	Male	50 Ohms	6000 MHz	Male	Shielded	609.6 mm	24 "	Free Hanging (In-Line)	LMR 400	Free Hanging (In-Line)
Amphenol Custom Cable Q-2B0740013072i	N-Type Plug Right Angle	TNC Plug	Black	Male	50 Ohms	6000 MHz	Male	Shielded	1.8 m	72 in	Free Hanging (In-Line)	LMR 400	Free Hanging (In-Line)	6 ft
Amphenol Custom Cable Q-2B0740013012i	N-Type Plug Right Angle	TNC Plug	Black	Male	50 Ohms	6000 MHz	Male	Shielded	304.8 mm	12 "	Free Hanging (In-Line)	LMR 400	Free Hanging (In-Line)
Amphenol Custom Cable Q-2B07400130.5M	N-Type Plug Right Angle	TNC Plug	Black	Male	50 Ohms	6000 MHz	Male	Shielded	50 cm	19.69 "	Free Hanging (In-Line)	LMR 400	Free Hanging (In-Line)
Amphenol Custom Cable Q-2B0740013001M	N-Type Plug Right Angle	TNC Plug	Black	Male	50 Ohms	6000 MHz	Male	Shielded	1 m	39.4 in	Free Hanging (In-Line)	LMR 400	Free Hanging (In-Line)	3.3 ft
Amphenol Custom Cable Q-2B0740013003i	N-Type Plug Right Angle	TNC Plug	Black	Male	50 Ohms	6000 MHz	Male	Shielded	76.2 mm	3 in	Free Hanging (In-Line)	LMR 400	Free Hanging (In-Line)
Amphenol Custom Cable Q-2B0740013036i	N-Type Plug Right Angle	TNC Plug	Black	Male	50 Ohms	6000 MHz	Male	Shielded	91.44 cm	36 in	Free Hanging (In-Line)	LMR 400	Free Hanging (In-Line)
Amphenol Custom Cable Q-2B0740013108i	N-Type Plug Right Angle	TNC Plug	Black	Male	50 Ohms	6000 MHz	Male	Shielded	2.7 m	108 in	Free Hanging (In-Line)	LMR 400	Free Hanging (In-Line)	9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 125.65
		25	$ 123.28
		50	$ 120.91
		100	$ 118.54
		250	$ 116.18

Description

General part information

Q-2B0740 Series

Cable Assembly Coaxial N-Type to TNC LMR 400 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
