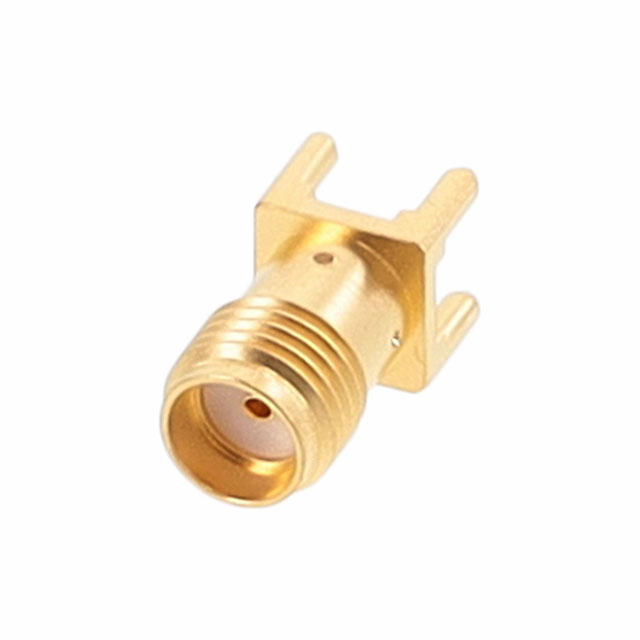

32K10K-400L5

Active

Rosenberger

RF SMA CONNECTOR, 1 CONTACT(S), FEMALE, BOARD MOUNT, SOLDER TERMINAL, LOCKING, JACK, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Rosenberger

RF SMA CONNECTOR, 1 CONTACT(S), FEMALE, BOARD MOUNT, SOLDER TERMINAL, LOCKING, JACK, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	32K10K-400L5

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	480 V

Part	Number of Ports	Shield Termination	Contact Termination	Center Contact Material	Center Contact Plating	Connector Type	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Mounting Type	Connector Style	Frequency - Max [Max]	Body Material	Housing Color	Voltage Rating	Body Finish	Impedance
Rosenberger 32K10K-400L5	1	Solder	Solder	Beryllium Copper	Gold	Female Socket Jack	Polytetrafluoroethylene (PTFE)	155 °C	-55 °C	500	Through Hole	SMA	12.4 GHz	Beryllium Copper	Gold	480 V	Gold	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Through Hole Solder
