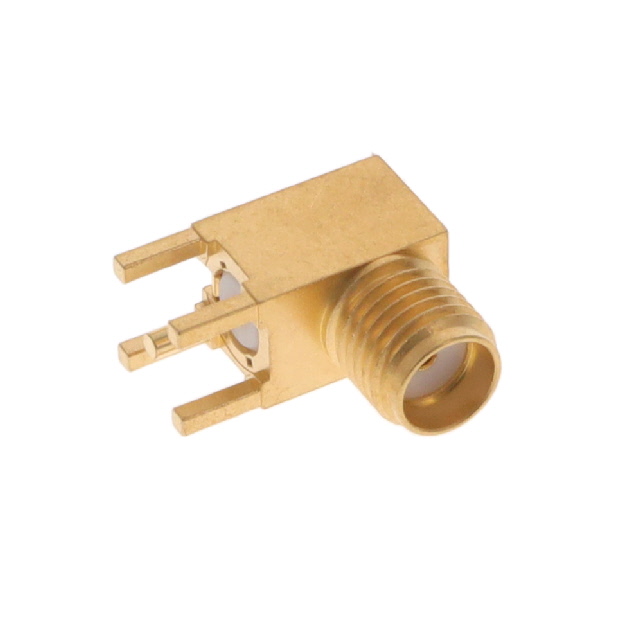

R124680123W

Active

Radiall USA, Inc.

SMA / RIGHT ANGLE JACK RECEPTACL

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / RIGHT ANGLE JACK RECEPTACL

Technical Specifications

Parameters and characteristics for this part

Specification	R124680123W

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Body Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Termination	Dielectric Material	Mounting Type	Number of Ports	Center Contact Material	Shield Termination	Housing Color	Connector Style	Center Contact Plating	Impedance	Body Finish	Frequency - Max [Max]
Radiall USA, Inc. R124680513
Radiall USA, Inc. R124681000W	Brass	500 V	-65 ░C	165 °C	Female Socket Jack	Solder	Polytetrafluoroethylene (PTFE)	Surface Mount Right Angle	1	Beryllium Copper	Solder	Gold	SMA	Gold	50 Ohms	Gold	6000 MHz
Radiall USA, Inc. R124680123W	Brass	335 V	-65 ░C	165 °C	Female Socket Jack	Solder	Polytetrafluoroethylene (PTFE)	Through Hole Right Angle	1	Beryllium Copper	Solder	Gold	SMA	Gold	50 Ohms	Gold	18 GHz
Radiall USA, Inc. R124681000	Brass	500 V	-65 ░C	165 °C	Female Socket Jack	Solder	Polytetrafluoroethylene (PTFE)	Surface Mount Right Angle	1	Beryllium Copper	Solder	Gold	SMA	Gold	50 Ohms	Gold	6000 MHz
Radiall USA, Inc. R124680120	Brass	500 V	-65 ░C	165 °C	Female Socket Jack	Solder	Polytetrafluoroethylene (PTFE)	Through Hole Right Angle	1	Beryllium Copper	Solder	Silver	SMA	Gold	50 Ohms	White Bronze	18 GHz
Radiall USA, Inc. R124680123	Brass	500 V	-65 ░C	165 °C	Female Socket Jack	Solder	Polytetrafluoroethylene (PTFE)	Through Hole Right Angle	1	Beryllium Copper	Solder	Gold	SMA	Gold	50 Ohms	Gold	18 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
