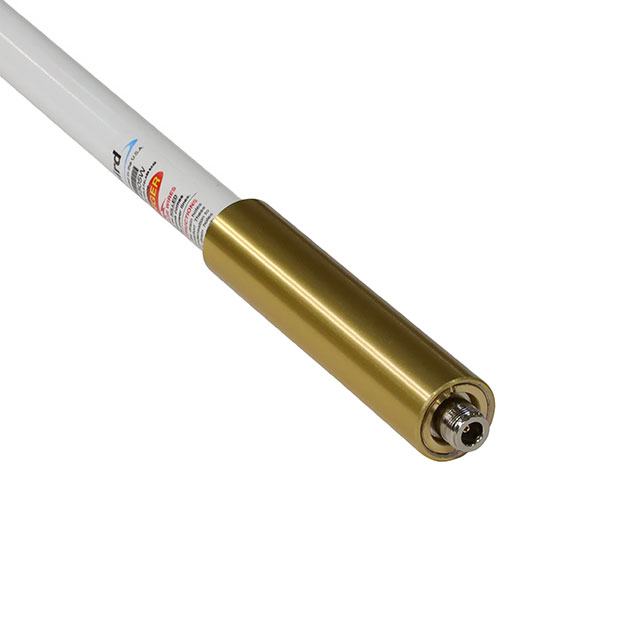

FG4505W
ActiveTE Connectivity Raychem Cable Protection
OMNI,FG,450-470MHZ,100W 460MHZ,7DBI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FG4505W |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency (Center/Band) | 460 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 470 MHz |
| Frequency Range [Min] | 450 MHz |
| Gain | 7 dBi |
| Height (Max) [Max] | 75 in |
| Height (Max) [Max] | 190.5 cm |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 100 W |
| Termination | N Type Female |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 178.59 | |
| 10 | $ 171.05 | |||
| 25 | $ 167.27 | |||
Description
General part information
FG4505 Series
Baton/Stick Antenna, Single Band, UHF, External Mount, Pole/Mast/Bracket Mount, N-type, Omnidirectional, Single Port, > 6 dBi Peak Gain, FG Series
