345-044-524-678
ActiveEDAC Inc.

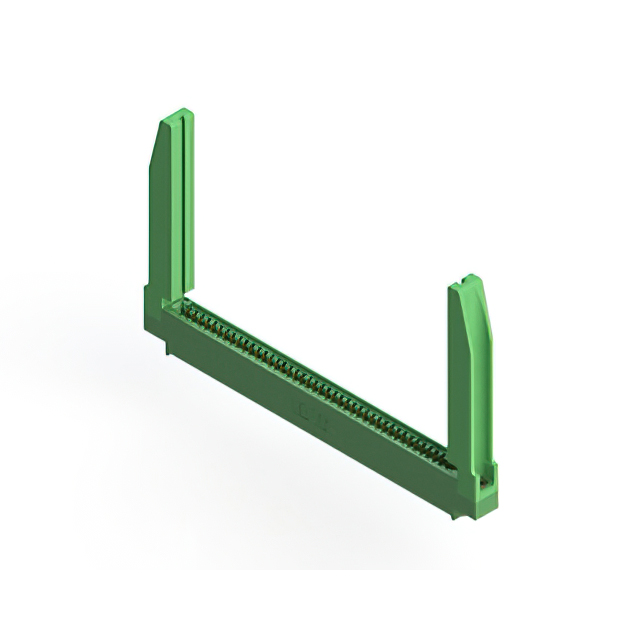

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 44 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-044-524-678
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 44 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-044-524-678 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 44 |
| Number of Positions/Bay/Row [custom] | 44 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
345-044 Series
...
| Part | Number of Positions | Contact Material | Termination | Pitch [x] | Pitch [x] | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Read Out | Termination Rows | Number of Rows | Contact Type | Color | Mounting Type | Contact Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 44 | Copper Alloy | Wire Wrap | 2.54 mm | 0.1 in | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 44 | Single | 1 | 1 | Cantilever | Green | Through Hole | Gold | |
EDAC Inc. | 44 | Copper Alloy | Wire Wrap | 2.54 mm | 0.1 in | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 44 | Single | 1 | 1 | Cantilever | Green | Through Hole Right Angle | Gold | Card Guides | ||
EDAC Inc. | 44 | Copper Alloy | Wire Wrap | 2.54 mm | 0.1 in | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 22 | Dual | 2 | 2 | Cantilever | Green | Through Hole | Gold | |||
EDAC Inc. | 44 | Copper Alloy | Wire Wrap | 2.54 mm | 0.1 in | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Polyester Thermoplastic | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 22 | Dual | 2 | 2 | Cantilever | Green | Through Hole | Gold | |
EDAC Inc. | 44 | Copper Alloy | Solder | 2.54 mm | 0.1 in | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 22 | Dual | 2 | 2 | Cantilever | Green | Through Hole | Gold | Card Guides | ||
EDAC Inc. | 44 | Copper Alloy | Wire Wrap | 2.54 mm | 0.1 in | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Polyester Thermoplastic | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 22 | Dual | 2 | 2 | Cantilever | Green | Through Hole Right Angle | Gold | |
EDAC Inc. | 44 | Copper Alloy | Solder | 2.54 mm | 0.1 in | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 44 | Single | 1 | 1 | Cantilever | Green | Through Hole | Gold | |
EDAC Inc. | 44 | Copper Alloy | Wire Wrap | 2.54 mm | 0.1 in | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 44 | Single | 1 | 1 | Cantilever | Green | Through Hole | Gold | |||
EDAC Inc. | 44 | Copper Alloy | Wire Wrap | 2.54 mm | 0.1 in | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 22 | Dual | 2 | 2 | Cantilever | Green | Through Hole | Gold | Card Guides | ||
EDAC Inc. | 44 | Copper Alloy | Solder | 2.54 mm | 0.1 in | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 44 | Single | 1 | 1 | Cantilever | Green | Through Hole | Gold | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-044 Series
44 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
