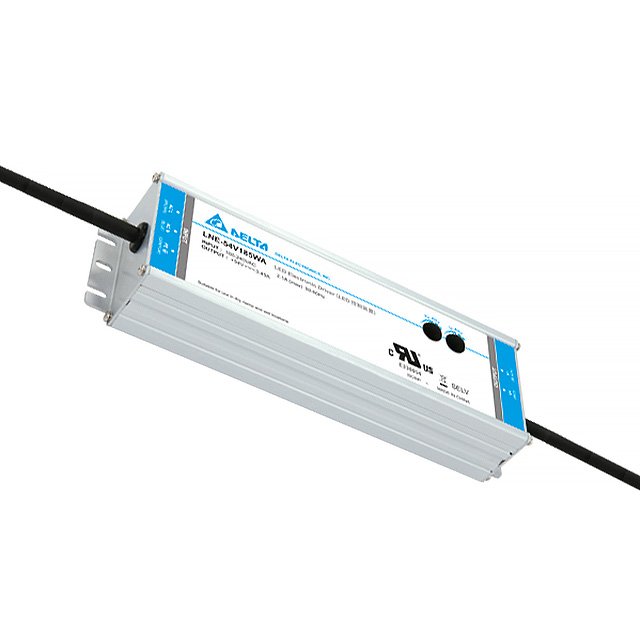

LNE-54V185WAAA
ObsoleteDelta Electronics
LED DRIVER CC/CV AC/DC 54V 3.45A
LNE-54V185WAAA
ObsoleteDelta Electronics
LED DRIVER CC/CV AC/DC 54V 3.45A
Description
General part information
LNE-54 Series
3.45A 27 ~ 54V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Technical Specifications
Parameters and characteristics for this part
| Specification | LNE-54V185WAAA |
|---|---|
| Approval Agency | UL |
| Current - Output (Max) | 3.45 A |
| Efficiency | 94 % |
| Features | OCP, SCP, OTP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 185 W |
| Ratings | IP65 |
| Size / Dimension Height | 1.53 in |
| Size / Dimension Length | 8.03 in |
| Size / Dimension Width | 2.68 in |
| Standard Number | 60950-1, 62368-1, 60601-1, 50581, 55011, 55032 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) | 305 V |
| Voltage - Input (Min) | 90 VAC |
| Voltage - Isolation | 3.85 kV |
| Voltage - Output (Max) | 54 V |
| Voltage - Output (Min) | 27 V |
| Weight | 2.4 lbs |
