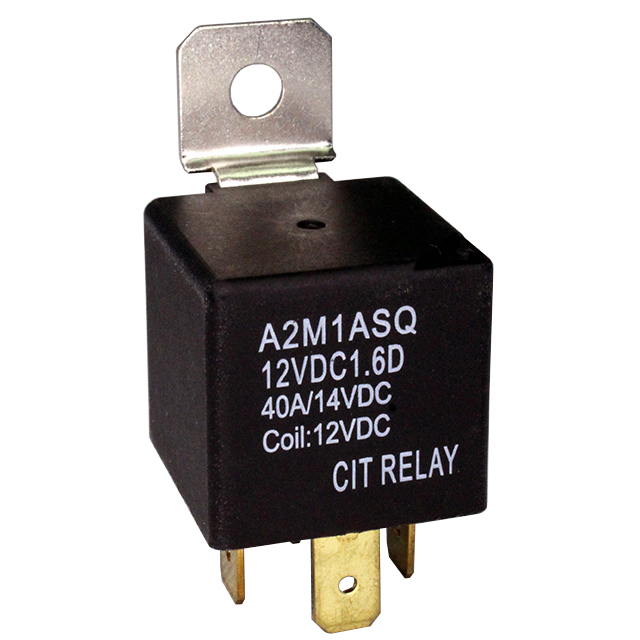

A2M1ASQ12VDC1.6D

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 40A 12V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 40A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY AUTOMOTIVE SPST 40A 24V

Part	Contact Form	Mounting Type	Coil Power	Release Time	Contact Material	Features	Must Operate Voltage	Coil Voltage	Operate Time	Termination Style	Must Release Voltage	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Coil Current	Switching Voltage	Coil Type
CIT Relay and Switch A2M1ASQ24VDC1.6	SPST-NO (1 Form A)	Chassis Mount	1.6 W	5 ms	Silver Tin Oxide (AgSnO)	Sealed - Fully	16.8 VDC	24 VDC	7 ms	Quick Connect - 0.250" (6.3mm)	2.4 VDC	40 A	125 °C	-40 °C	360 Ohms	66.7 mA	75 VDC	Non Latching
CIT Relay and Switch A2M1ASQ12VDC1.6D	SPST-NO (1 Form A)	Chassis Mount	1.6 W	5 ms	Silver Tin Oxide (AgSnO)	Diode, Sealed - Fully	8.4 VDC	12 VDC	7 ms	Quick Connect - 0.250" (6.3mm)	1.2 VDC	40 A	125 °C	-40 °C	90 Ohms	133.3 mA	75 VDC	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPST 40A 12V

Technical documentation and resources
