N4240EA520

Active

IXYS

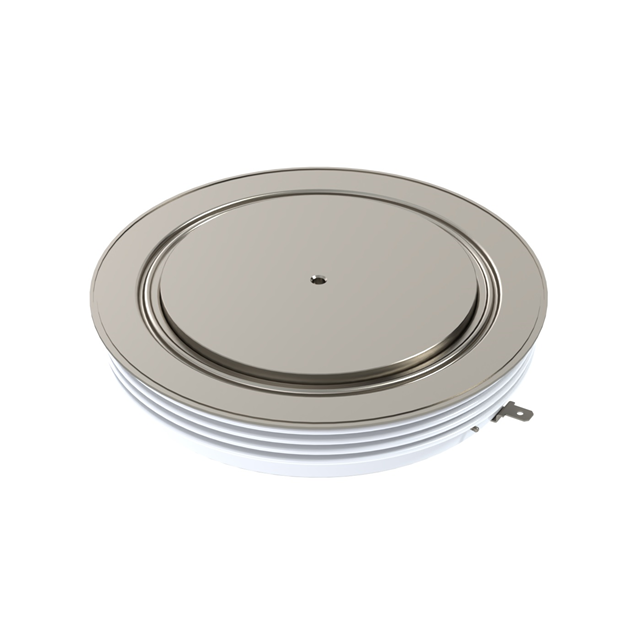

THYRISTOR PHASE 4240A 5200V DISC

Search across all available documentation for this part.

Active

IXYS

THYRISTOR PHASE 4240A 5200V DISC

Technical Specifications

Parameters and characteristics for this part

Specification	N4240EA520

Current - Gate Trigger (Igt) (Max) [Max]	300 mA
Current - Hold (Ih) (Max) [Max]	1 A
Current - Non Rep. Surge 50, 60Hz (Itsm)	4750 A
Current - On State (It (AV)) (Max) [Max]	4240 A
Current - On State (It (RMS)) (Max)	8200 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	1 SCR
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-200AF
Structure	Single
Voltage - Off State	5.2 kV

Part	Current - Hold (Ih) (Max) [Max]	Current - On State (It (RMS)) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Off State	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (AV)) (Max) [Max]	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]	Number of SCRs, Diodes	Mounting Type	Structure
IXYS N4240EA520	1 A	8200 A	4750 A	5.2 kV	125 °C	-40 °C	4240 A	TO-200AF	300 mA	1 SCR	Chassis Mount	Single

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR Module 5.2 kV 8200 A Single Chassis Mount TO-200AF
