110-83-314-41-530000

Obsolete

Mill-Max Manufacturing Corp.

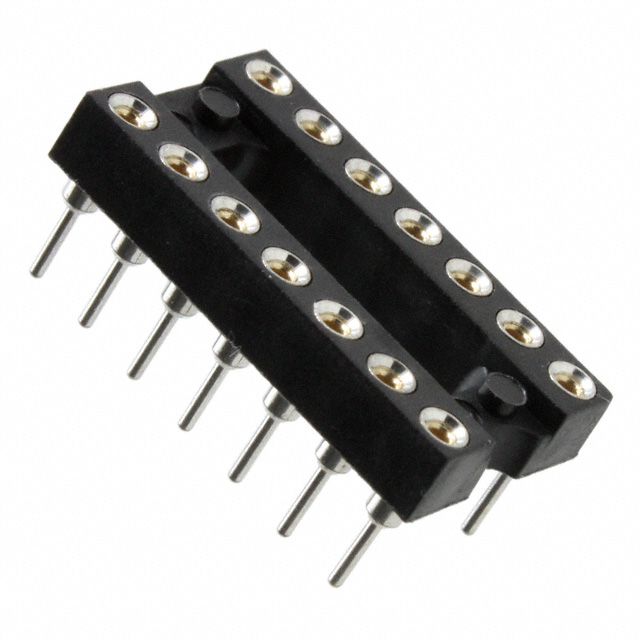

CONN IC DIP SOCKET 14POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

110-83-314-41-530000

Obsolete

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 14POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	110-83-314-41-530000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	300 µin
Contact Finish Thickness - Post	7.62 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	14
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

110-83 Series

Part	Termination Post Length	Termination Post Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Housing Material	Contact Material - Post	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Pitch - Post	Pitch - Post	Contact Finish - Mating	Contact Finish - Post	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid)	Pitch - Mating	Pitch - Mating	Features	Type	Type	Type	Termination	Contact Material - Mating	Contact Resistance
Mill-Max Manufacturing Corp. 110-83-314-41-530000	3.18 mm	0.125 in	300 µin	7.62 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass Alloy	3 A	30 Áin	0.76 Ám	Through Hole	2.54 mm	0.1 in	Gold	Tin-Lead	UL94 V-0	-55 °C	125 °C	14	0.1 in	2.54 mm	Open Frame	0.3 "	7.62 mm	DIP	Solder	Beryllium Copper
Mill-Max Manufacturing Corp. 110-83-316-41-530000	3.18 mm	0.125 in	300 µin	7.62 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass Alloy	3 A	30 Áin	0.76 Ám	Through Hole	2.54 mm	0.1 in	Gold	Tin-Lead	UL94 V-0	-55 °C	125 °C	16	0.1 in	2.54 mm	Open Frame	0.3 "	7.62 mm	DIP	Solder	Beryllium Copper
Mill-Max Manufacturing Corp. 110-83-320-41-530000	3.18 mm	0.125 in	300 µin	7.62 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass Alloy	3 A	30 Áin	0.76 Ám	Through Hole	2.54 mm	0.1 in	Gold	Tin-Lead	UL94 V-0	-55 °C	125 °C	20	0.1 in	2.54 mm	Open Frame	0.3 "	7.62 mm	DIP	Solder	Beryllium Copper	10 mOhm
Mill-Max Manufacturing Corp. 110-83-318-41-530000	3.18 mm	0.125 in	300 µin	7.62 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass Alloy	3 A	30 Áin	0.76 Ám	Through Hole	2.54 mm	0.1 in	Gold	Tin-Lead	UL94 V-0	-55 °C	125 °C	18	0.1 in	2.54 mm	Open Frame	0.3 "	7.62 mm	DIP	Solder	Beryllium Copper	10 mOhm
Mill-Max Manufacturing Corp. 110-83-308-41-530000	3.18 mm	0.125 in	300 µin	7.62 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass Alloy	3 A	30 Áin	0.76 Ám	Through Hole	2.54 mm	0.1 in	Gold	Tin-Lead	UL94 V-0	-55 °C	125 °C	8	0.1 in	2.54 mm	Open Frame	0.3 "	7.62 mm	DIP	Solder	Beryllium Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

110-83 Series

14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available
