VXM1-9003-12M0000000TR
ActiveMicrochip Technology
12MHZ SMD CRYSTAL 5.0X3.2MM
Deep-Dive with AI
Search across all available documentation for this part.
VXM1-9003-12M0000000TR
ActiveMicrochip Technology
12MHZ SMD CRYSTAL 5.0X3.2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VXM1-9003-12M0000000TR |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Frequency | 12 MHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] [z] | 1.3 mm |
| Height - Seated (Max) [Max] [z] | 0.051 in |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.74 | |
| 25 | $ 0.61 | |||
| 100 | $ 0.59 | |||
| Digi-Reel® | 1 | $ 0.74 | ||
| 25 | $ 0.61 | |||
| 100 | $ 0.59 | |||
| Tape & Reel (TR) | 1000 | $ 0.59 | ||
| Microchip Direct | T/R | 1 | $ 0.74 | |
| 25 | $ 0.61 | |||
| 100 | $ 0.56 | |||
| 1000 | $ 0.53 | |||
VXM1-9003 Series

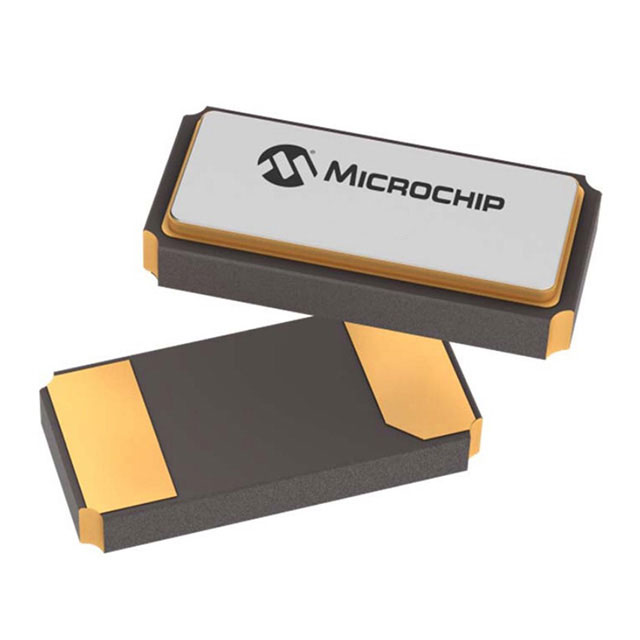

5.0x3.2mm SMD Crystal 2 Pad
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [Max] | Operating Temperature [Min] | ESR (Equivalent Series Resistance) | Frequency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Type | Mounting Type | Package / Case | Frequency Tolerance | Operating Mode |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology VXM1-9003-12M0000000TR | 1.3 mm | 0.051 in | 85 °C | -40 °C | 100 Ohms | 12 MHz | 0.197 in | 0.126 " | 3.2 mm | 5 mm | MHz Crystal | Surface Mount | 2-SMD, No Lead | 20 ppm | Fundamental |
Description
General part information
VXM1-9003 Series
VXM1 standard crystals come in a industry standard 5x3.2mm 2 pad package. The VXM1 has a frequency range of 8MHz to 60MHz with high stability and accuracy.
