M39003/01-2334

Active

Vishay Sprague

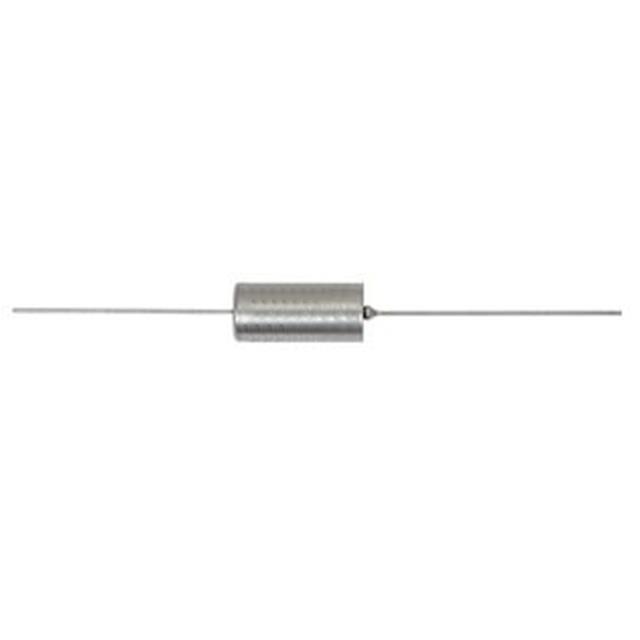

CAP TANT 0.056UF 10% 50V AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M39003/01-2334

Active

Vishay Sprague

CAP TANT 0.056UF 10% 50V AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M39003/01-2334	M39003/01 Series

Capacitance	0.056 µF	0.033 - 100000 µF
Failure Rate	M (1%)	C (0.01%), M (1%), B (0.1%), D, P, R (0.01%), S (0.001%)
Features	High Reliability	High Reliability
Grade	Military	Military
Manufacturer Size Code	A	B, A, D
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial	Axial
Qualification	MIL-PRF-39003/1	MIL-PRF-39003/1
Size / Dimension	-	0.474 - 0.786 in
Size / Dimension	-	12.04 - 19.96 mm
Size / Dimension	-	0.185 - 0.351 in
Size / Dimension [custom]	0.286 in, 7.26 mm	0.286 - 7.26 in
Size / Dimension [diameter]	0.135 in, 3.43 mm	0.135 - 8.92 mm
Tolerance	10 %	5 - 20 %
Type	Hermetically Sealed	Hermetically Sealed
Voltage - Rated	50 VDC	6 - 100 VDC

M39003/01 Series

CAP TANT 1.2UF 10% 50V AXIAL

...

Part	Manufacturer Size Code	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Qualification	Failure Rate	Grade	Features	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Type	Tolerance	Package / Case	Size / Dimension [custom]
Vishay Sprague M39003/01-7197	B	0.474 in	12.04 mm	0.185 in	4.7 mm	Through Hole	MIL-PRF-39003/1	C (0.01%)	Military	High Reliability	50 VDC	-55 °C	125 °C	1.2 µF	Hermetically Sealed	10 %	Axial
Vishay Sprague M39003/01-5001H	A				0.135 in, 3.43 mm	Through Hole	MIL-PRF-39003/1	M (1%)	Military	High Reliability	6 VDC	-55 °C	125 °C	5.6 µF	Hermetically Sealed	5 %	Axial	0.286 in, 7.26 mm
Vishay Sprague M39003/01-6025/HSD	A				0.135 in, 3.43 mm	Through Hole	MIL-PRF-39003/1	B (0.1%)	Military	High Reliability	10 V	-55 °C	125 °C	4.7 µF	Hermetically Sealed	20 %	Axial	0.286 in, 7.26 mm
Vishay Sprague M39003/01-7078	B	0.474 in	12.04 mm	0.185 in	4.7 mm	Through Hole	MIL-PRF-39003/1	C (0.01%)	Military	High Reliability	20 V	-55 °C	125 °C	10 µF	Hermetically Sealed	10 %	Axial
Vishay Sprague M39003/01-8337	A				0.135 in, 3.43 mm	Through Hole	MIL-PRF-39003/1	D	Military	High Reliability	100 V	-55 °C	125 °C	0.056 µF	Hermetically Sealed	5 %	Axial	0.286 in, 7.26 mm
Vishay Sprague M39003/01-2349	A				0.135 in, 3.43 mm	Through Hole	MIL-PRF-39003/1	M (1%)	Military	High Reliability	50 VDC	-55 °C	125 °C	0.39 µF	Hermetically Sealed	10 %	Axial	0.286 in, 7.26 mm
Vishay Sprague M39003/01-6286/TR		0.686 in	17.42 mm	0.289 in	7.34 mm	Through Hole	MIL-PRF-39003/1	B (0.1%)	Military	High Reliability	75 V	-55 °C	125 °C	4.7 µF	Hermetically Sealed	5 %	Axial
Vishay Sprague M39003/01-2266/TR	D	0.786 "	19.96 mm	0.351 in	8.92 mm	Through Hole	MIL-PRF-39003/1	M (1%)	Military	High Reliability	10 V	-55 °C	125 °C	220 µF	Hermetically Sealed	20 %	Axial
Vishay Sprague M39003/01-5362		0.686 in	17.42 mm	0.289 in	7.34 mm	Through Hole	MIL-PRF-39003/1	P	Military	High Reliability	100 V	-55 °C	125 °C	4.7 µF	Hermetically Sealed	10 %	Axial
Vishay Sprague M39003/01-2334	A				0.135 in, 3.43 mm	Through Hole	MIL-PRF-39003/1	M (1%)	Military	High Reliability	50 VDC	-55 °C	125 °C	0.056 µF	Hermetically Sealed	10 %	Axial	0.286 in, 7.26 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 14.27

Description

General part information

M39003/01 Series

0.056 µF Hermetically Sealed Tantalum Capacitors 50 V Axial
