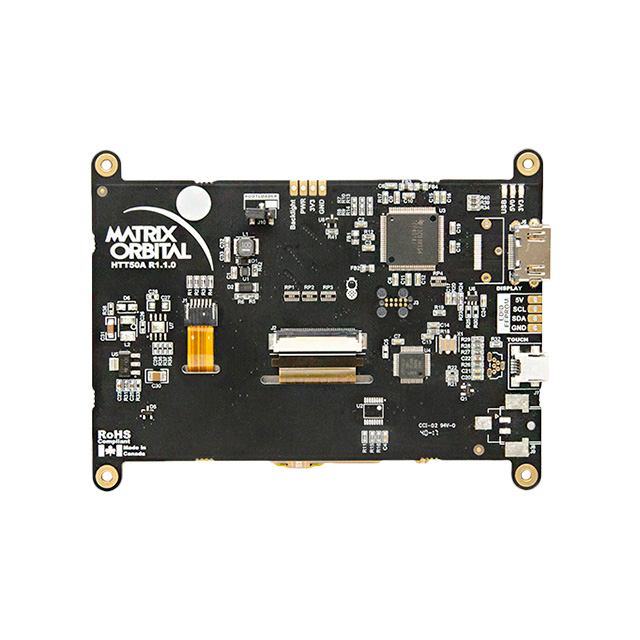

Specification	HTT50A-TPC-BLM-B0-H5-CH-VPT

Background Color	Black
Diagonal Screen Size	5 in
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pitch Height	0.14 mm
Dot Pitch Width	0.14 mm
Dot Pixels (Horizontal)	800 pixels
Dot Pixels (Resolution)	WVGA
Dot Pixels (Vertical)	480 pixels
Graphics Color	Red, Green, Blue
Interface	HDMI
Touchscreen	Capacitive
Viewing Area Height	66.1 mm
Viewing Area Width	109.3 mm

HTT50A Series

Part	Dot Pitch Width	Dot Pitch Height	Dot Pixels (Vertical)	Dot Pixels (Resolution)	Dot Pixels (Horizontal)	Touchscreen	Viewing Area Width	Viewing Area Height	Diagonal Screen Size	Background Color	Display Type	Display Mode	Interface	Graphics Color
Matrix Orbital HTT50A-TPR-BLM-B0-H6-CH-VPT	0.14 mm	0.14 mm	480 pixels	WVGA	800 pixels	Resistive	110.7 mm	67.4 mm	5 in	Black	TFT - Color	Transmissive	HDMI	Blue Green Red
Matrix Orbital HTT50A-TPC-BLM-B0-H6-CH-VPT	0.14 mm	0.14 mm	480 pixels	WVGA	800 pixels	Capacitive	109.3 mm	66.1 mm	5 in	Black	TFT - Color	Transmissive	HDMI	Blue Green Red
Matrix Orbital HTT50A-TPC-BLM-B0-H5-CH-VPT	0.14 mm	0.14 mm	480 pixels	WVGA	800 pixels	Capacitive	109.3 mm	66.1 mm	5 in	Black	TFT - Color	Transmissive	HDMI	Blue Green Red
Matrix Orbital HTT50A-TPR-BLM-B0-H5-CH-VPT	0.14 mm	0.14 mm	480 pixels	WVGA	800 pixels	Resistive	110.7 mm	67.4 mm	5 in	Black	TFT - Color	Transmissive	HDMI	Blue Green Red
Matrix Orbital HTT50A-TPR-BLM-B0-H6-CH-V5	0.14 mm	0.14 mm	480 pixels	WVGA	800 pixels	Resistive	110.7 mm	67.4 mm	5 in	Black	TFT - Color	Transmissive	HDMI	Blue Green Red
Matrix Orbital HTT50A-TPN-BLM-B0-H6-CH-VPT	0.14 mm	0.14 mm	480 pixels	WVGA	800 pixels		110.7 mm	67.4 mm	5 in	Black	TFT - Color	Transmissive	HDMI	Blue Green Red
Matrix Orbital HTT50A-TPR-BLM-B0-H5-CH-V5	0.14 mm	0.14 mm	480 pixels	WVGA	800 pixels	Resistive	110.7 mm	67.4 mm	5 in	Black	TFT - Color	Transmissive	HDMI	Blue Green Red
Matrix Orbital HTT50A-TPN-BLM-B0-H5-CH-V5	0.14 mm	0.14 mm	480 pixels	WVGA	800 pixels		110.7 mm	67.4 mm	5 in	Black	TFT - Color	Transmissive	HDMI	Blue Green Red
Matrix Orbital HTT50A-TPN-BLM-B0-H6-CH-V5	0.14 mm	0.14 mm	480 pixels	WVGA	800 pixels		110.7 mm	67.4 mm	5 in	Black	TFT - Color	Transmissive	HDMI	Blue Green Red
Matrix Orbital HTT50A-TPC-BLM-B0-H5-CH-V5	0.14 mm	0.14 mm	480 pixels	WVGA	800 pixels	Capacitive	109.3 mm	66.1 mm	5 in	Black	TFT - Color	Transmissive	HDMI	Blue Green Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

HTT50A-TPC-BLM-B0-H5-CH-VPT | Datasheet
