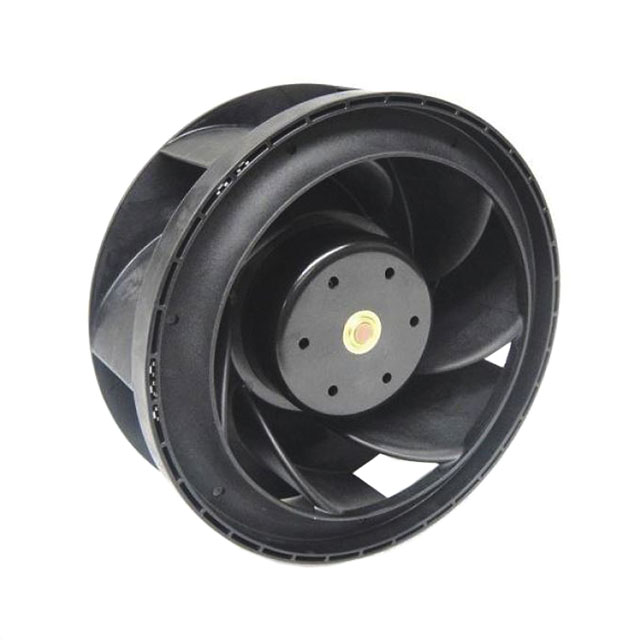

F175H3-061-D0540

Active

NMB TECHNOLOGIES

FAN BLOWER, F175H SERIES, MOTORIZED IMPELLER, 24 VDC, DC, 175 MM, 69 MM, 541 CFM

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

FAN BLOWER, F175H SERIES, MOTORIZED IMPELLER, 24 VDC, DC, 175 MM, 69 MM, 541 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	F175H3-061-D0540

Air Flow	15.15 m³/min
Air Flow	541 CFM
Bearing Type	Ball
Current Rating (Amps)	4.7 A
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Noise	74 dB(A)
Operating Temperature [Max] [custom]	70 °C
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-30 °C
Operating Temperature [Min] [custom]	-22 °F
Power (Watts)	113 W
Size / Dimension [diameter]	175 mm Dia
Static Pressure	3.49 in H2O
Static Pressure	870 Pa
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	30 V
Voltage Range [Min]	18 VDC
Weight	907.2 g
Weight	2 lbs
Width [x]	69 mm

Part	Voltage - Rated	Lifetime @ Temp.	Operating Temperature [Min] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Max] [custom]	Fan Type	Power (Watts)	Bearing Type	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	Termination	Material - Blade	Noise	Air Flow	Air Flow	Current Rating (Amps)	Weight	Weight	Size / Dimension [diameter]	Features	Width [x]
NMB TECHNOLOGIES F175H3-061-D0540	24 VDC	70000 Hrs	-30 °C	-22 °F	70 °C	158 °F	Motorized Impellers	113 W	Ball	3.49 in H2O	870 Pa	18 VDC	30 V	4 Wire Leads	Plastic	74 dB(A)	15.15 m³/min	541 CFM	4.7 A	907.2 g	2 lbs	175 mm Dia	PWM Control Speed Sensor (Tach)	69 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 24VDC Round - 175mm Dia Ball 541.0 CFM (15.15m³/min) 4 Wire Leads
